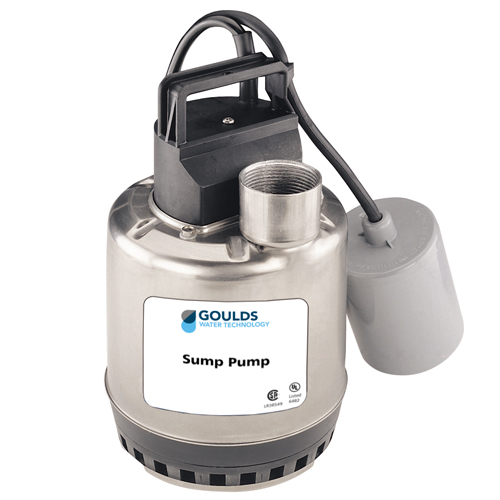

LSP0711F Goulds Pumps Submersible Sump Pump (3/4 HP, 1 Phase, 115 Volts)
|
Images may be generic. Please inquire
|
Your Price:
Contact Us For a Quote
|
|
Applications |
|
Basement draining, Water transfer, Dewatering |
|
|
|
Features |
|
Corrosion-resistant construction |
|
|
Stainless Steel motor casing and fasteners |
|
|
Glass-filled thermoplastic impeller and casing. |
|
|
Upper and lower heavy duty ball bearing construction. |
|
|
Motor is permanently lubricated for extended service life and is powered for continuous operation. All ratings are within the working limits of the motor. |
|
|
Hard coated 400 series stainless steel shaft for improved corrosion resistance. |
|
|
Float switch is adjustable for various liquid levels. Easily removed for direct pump operation or switch replacement. |
|
|
Complete unit is lightweight, portable and easy to service. |
|
|
A double labyrinth lip seal system protects the motor. It consists of three lip seals and a V-ring in addition to an impeller counterblade system which keeps solid particles away from the seal unit. |
|
|
Built-in thermal overload protection with automatic reset. |
|
|
Permanent-split-capacitor type, Stainless steel shaft, Air filled design |
|
| Specifications | | Brand | Goulds Pumps | | Catalog Number | LSP0711F | | Type | Goulds Submersible Sump Pumps | | Series | LSP03/LSP07 | | HP | 3/4 | | Phase | 1 | | Volts | 115 | | Amps | 7.1 | | Minimum Circuit Breaker | 10 | | Float Switch Style | Plug / No Switch | | Cord Length | 20' | | Discharge Connection | 1-1/2" | | Min. On Level | Manual | | Min. Off Level | Manual | | Minimum Basin Diameter | 9" | | Maximum Solids Size | 3/8" | | Max GPM | 55 | | Max Head | 35 | | RPM | 3450 | | Max Submergence | 16 ft | | Notes | See Support Documents |
Item Number:
LSP0711F
Manufacturer:
Goulds Pumps
Manufacturer Part No:
LSP0711F
|
|
|
