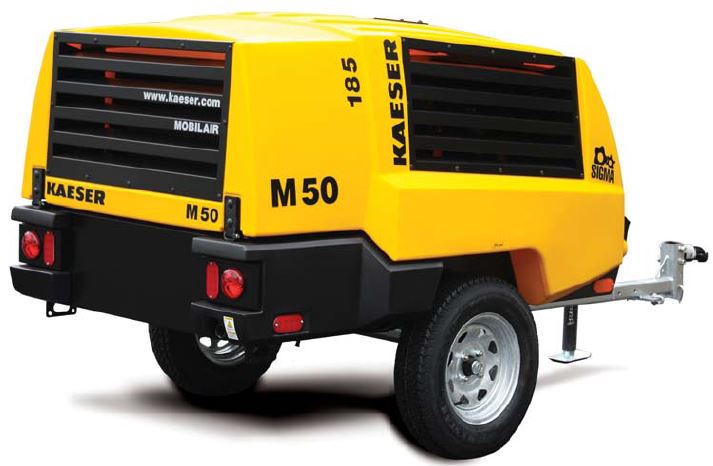

M50 Kaeser Portable Air Compressor (185 CFM, 100 PSI, Diesel, Tow Behind)
|
Images may be generic. Please inquire
|
Your Price:
No Longer Available - Suggested replacement is model # M55PE. Contact us for a quote.
|
| Applications |
| The Mobilair M50 is a versatile portable screw compressor that offers heavy-duty performance in a light weight package. It is well suited for many applications including sand-blasting, pavement breaking, and general air tool use. These units are built to meet the demands of rental houses, repair trucks, and railroad applications. |
| |
| Features |
| Direct drive rotary screw airend: Sigma profile produces more air with less fuel consumption |
|
| Rotomolded polymer canopy is scratch and dent resistant |
|
| 1 micron, 2-stage compressor inlet filter with maintenance indicator |
|
| 10 micron engine air filter with maintenance indicator |
|
| Exclusive anti-frost valve maintains optimum operating temperature and prevents tool freeze up |
|
| Heavy duty, 3-cylinder Kubota diesel engine complies with Tier 4 emissions standards |
|
| Tool box for convenient storage |
|
| Highly efficient cooling system |
|
| Modulation control |
|
| Lighting package |
|
|
Specifications
|
|
Brand
|
Kaeser
|
|
Catalog Number
|
M50
|
|
Type
|
Portable Air Compressor, Diesel
|
|
Series
|
Kaeser Mobilair Series
|
|
cfm @ 100 psig
|
185
|
|
PSI
|
100
|
|
HP
|
41
|
|
Fuel Type
|
Diesel
|
|
Engine Make
|
Kubota V1505-T IDI
|
|
Fuel Tank Capacity (gal)
|
21
|
|
Outlets
|
2 x 3/4" ; 1 x 1"
|
|
Sound Level Max
|
76 db(A) at 23 ft.
|
|
Dry Weight (lb.)
|
1470
|
|
Dimensions L x W x H (in.)
|
136-1/2 x 56-3/4 x 55-3/4 (w/ tow bar)
|
|
Mount
|
Tow Behind
|
|
Notes
|
See Support Documents
|
Item Number:
M50
Manufacturer:
Kaeser
Manufacturer Part No:
M50
|
|
|
