MDC33T10 Myers Pumps Submersible Sump Light Effluent Pump (1/3 HP, Tethered Switch, 10' Cord, 115 Voltage, 1 Phase, 1-1/2" NPT Discharge)
| Applications |

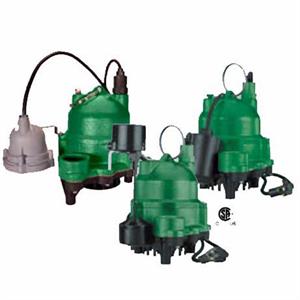

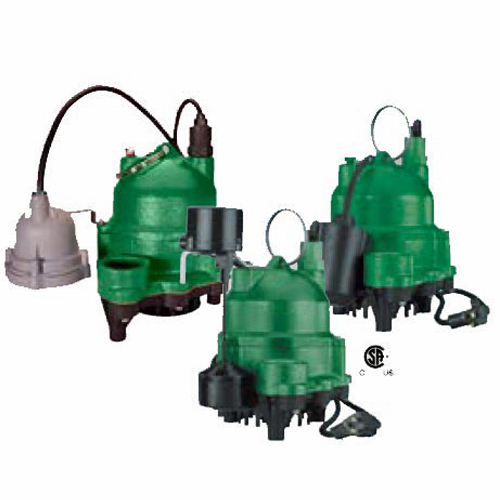

| The Myers MDC series cast iron sump/light effluent pumps are designed to operate in a variety of installations. A unique combination of corrosion-resistant materials make these pumps a great choice for extreme conditions. Pump intake screen, impeller, volute base, switch, and power cord are serviceable. |
| |
| Features |
| Solid and Reliable - High-endurance, oil-cooled motor provides continuous bearing lubrication and maximizes heat dissipation. |
|
| Motor Protection - Long-life carbon/ceramic seal protects motor against water leakage. |
|
| Thermal Overload - Heat sensor overload protection with automatic reset when motor cools to a safe operating temperature. |
|
| Piggyback Plug for Convenience - Offered in manual or automatic operation. Tethered, Vertical and Diaphragm switch models offer a piggyback plug for easy service. |
|
| All float switches are piggyback |
|
|
Specifications
|
|
Brand
|
Myers Pumps
|
|
Catalog Number
|
MDC33T10
|
|
Type
|
Submersible Sump Light Effluent Pumps
|
|
Series
|
MDC Series
|
|
HP
|
1/3
|
|
Switch
|
Tethered
|
|
Cord
|
10'
|
|
Lower Casing Volute Material
|
Engineered Polymer
|
|
Voltage
|
115
|
|
Phase
|
1
|
|
AMPS
|
9.8
|
|
Discharge
|
1-1/2" NPT
|
|
Approx. Weight (lbs)
|
25
|
|
Shut Off Head
|
24'
|
|
Max GPM
|
48 GPM
|
|
Float Switch ON
|
9"
|
|
Float Switch OFF
|
4"
|
|
Solids Handling
|
1/2"
|
|
Liquids Handling
|
Drainage Effluent
|
|
Cont. Liquid Temp
|
130F
|
|
Acceptable PH Range
|
6-9
|
|
Housing Material
|
Heavy Cast Iron
|
|
Min. Basin Diameter
|
10"
|
