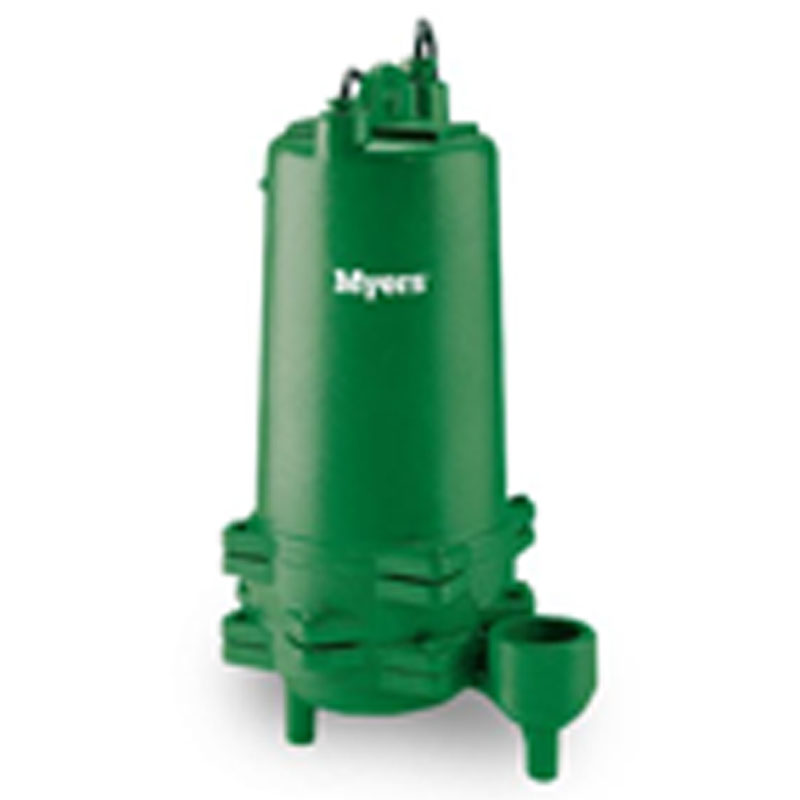

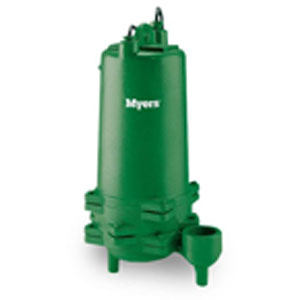

ME100S-03 Myers Effluent Pump (1 HP, 3 Phase, 200 Voltage, 20' Cord Length, 3/4" Solids Handling, Manual Switch)
| Applications |
| Effluent removal, sump drainage, water transfer, flood control |
| |
| Features |
| High-efficiency, two-vane, enclosed impeller provides ideal performance for efficient dosing Impeller passes full 3/4 solids |
|
| Enclosed impeller design eliminates the possibility of jamming or corrosion between impeller and volute |
|
| Oil-filled motor for maximum heat dissipation and constant bearing lubrication |
|
| High-torque, permanent split capacitor (PSC), single-phase motors; no starting switches or relays to wear out |
|
| Motors have a winding current and temperature-sensitive overload (single phase only) |
|
| Volute seal ring is replaceable; restores pump to original performance if wear should occur |
|
| Motor is held in place by 4 screws; easily removed if service is ever needed |
|
|
Specifications
|
|
Brand
|
Myers
|
|
Catalog Number
|
ME100S-03
|
|
Type
|
Cast Iron Effluent Pump
|
|
Series
|
ME
|
|
ENG. NO.
|
25325D023
|
|
HP
|
1
|
|
Phase
|
3
|
|
Voltage
|
200
|
|
Cord Length
|
20'
|
|
Discharge
|
2"
|
|
Solids Handling
|
3/4"
|
|
Switch
|
Manual
|
|
Liquids Handling
|
Domestic effluent and drain water
|
|
RPM
|
3450
|
|
Impeller
|
Thermoplastic
|
|
Discharge pipe size
|
2" NPT
|
|
Maximum Capacity
|
120 GPM
|
|
Maximum Head
|
95'
|
|
Body Construction
|
Cast Iron
|
|
Acceptable pH Range
|
6-9
|
|
Viscosity
|
28-35 SSU
|
|
Warranty
|
2 year limited warranty
|
Item Number:
ME100S-03
Manufacturer:
Myers Pumps
Manufacturer Part No:
25325D023
|
|
|
