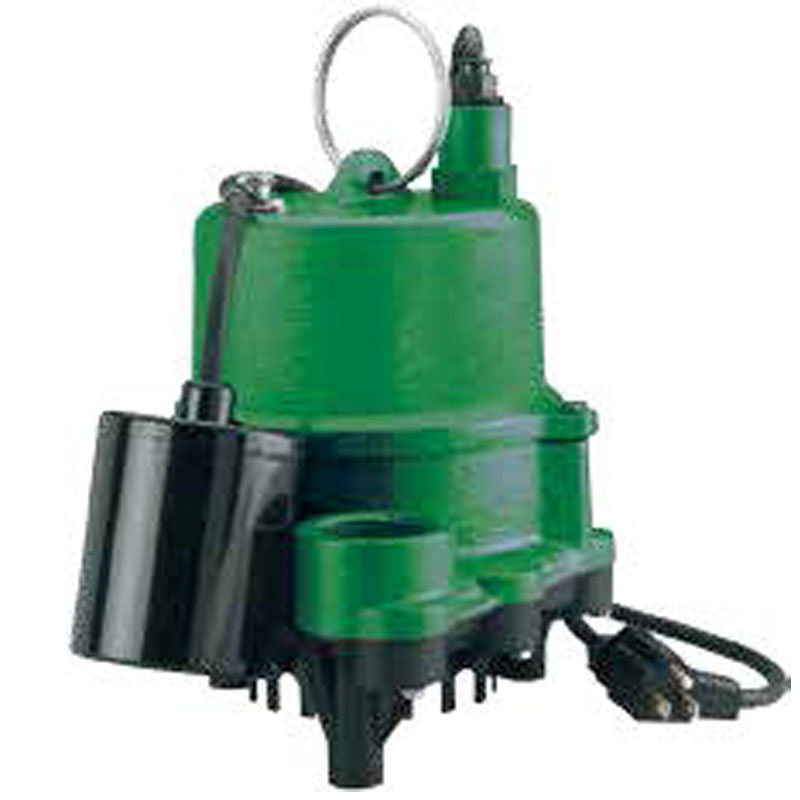

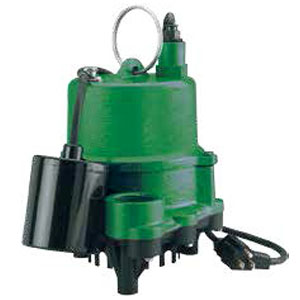

ME40110T Myers Submersible Effluent Pumps (4/10 HP, 1 Phase, 115 Voltage, 1-1/2" Discharge, Piggy Back Tethered Switch)
| Applications |
| Septic Tank Effluent Removal, Sump Drainage, and Circulation |
| |
| Features |
| Construction Heavyduty cast iron motor housing and upper volute. Corrosion-resistant composite base ideal for effluent applications. |
|
| Bearings and Mechanical Seal Permanently lubricated for long life. |
|
| Cord Seal Prevents oil loss from and protection for motor if cord is damaged. |
|
| Overload Protection Built-in thermal overload with automatic reset. |
|
| Intake Built-in suction screen. |
|
|
Specifications
|
|
Brand
|
Myers
|
|
Catalog Number
|
ME40110T
|
|
Type
|
Submersible Effluent Pump
|
|
Series
|
ME4
|
|
HP
|
4/10
|
|
Phase
|
1
|
|
Voltage
|
115
|
|
Cord Length
|
10'
|
|
Discharge
|
1-1/2"
|
|
Solids Handling
|
1/2"
|
|
Switch
|
Piggy Back Tethered
|
|
Capacities (GPM)
|
62
|
|
Shut-Off Head
|
32'
|
|
RPM
|
1550
|
|
Acceptable pH range
|
6-8
|
|
Motor Housing
|
Cast Iron
|
|
Upper Volute Case
|
Cast Iron
|
|
Impeller
|
Thermoplastic Vortex
|
Item Number:
ME40110T
Manufacturer:
Myers Pumps
Manufacturer Part No:
ME40110T
|
|
|
