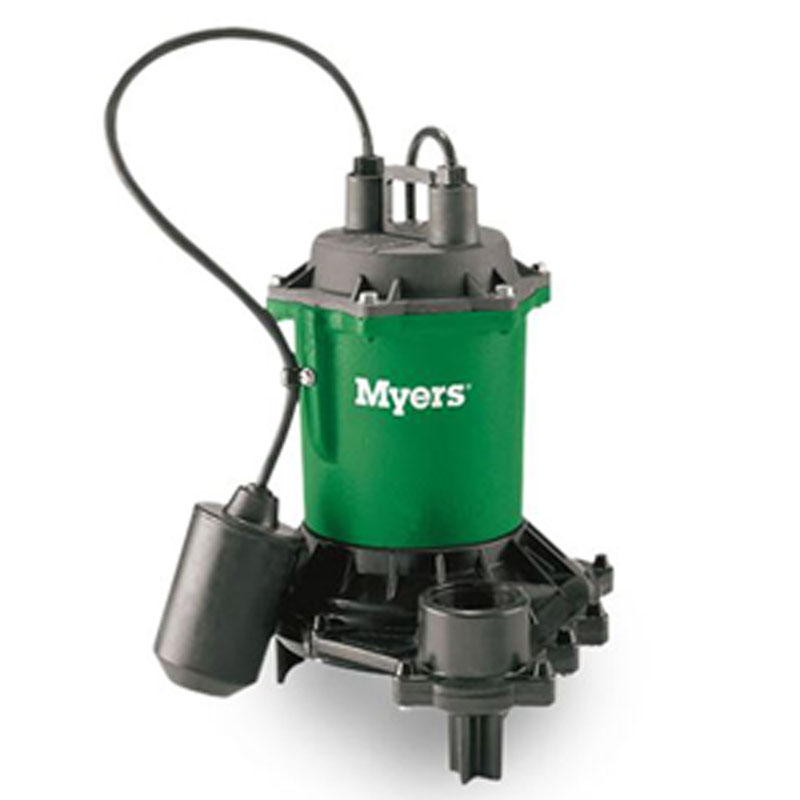

ME40A-11 Myers Effluent & Drain Water Pump (4/10 HP, 1 Phase, 115 Voltage, 10' Cord Length, 1-1/2" Discharge, Tethered Switch)
| Applications |
| Effluent removal, sump drainage, water transfer, flood control |
| |
| Features |
| Efficient Dosing: Two-vane cast iron impeller design provides maximum dosing efficiency |
|
| Powerful Torque: High-torque, permanent split capacitor (PSC) motor; no starting switches or relays to wear out |
|
| Rugged and Cool: Rugged-built, oil-filled motor for continuous bearing lubrication and maximum heat dissipation |
|
| Water-tight Fit: Positive sealing, quick-connect float and switch cords make replacement easy |
|
| Seal Protection: Lower ball bearing and heavy duty Type 6 seal for added pump life |
|
| Automatically Better: Field-tested, wide-angle, mercuryfree float switch provides maximum drawdown (automatic models only) |
|
| Dual Operation: Automatic float switch or manual operation by plugging directly into outlet |
|
| Thermal Protection: Heat sensor overload protection with automatic reset when motor cools to a safe operating temperature |
|
|
Specifications
|
|
Brand
|
Myers
|
|
Catalog Number
|
ME40A-11
|
|
Type
|
Cast Iron Effluent & Drain Water Pump
|
|
Series
|
ME40
|
|
Model
|
ME40A-11
|
|
HP
|
4/10
|
|
Phase
|
1
|
|
Voltage
|
115
|
|
Cord Length
|
10'
|
|
Discharge
|
1-1/2"
|
|
Solids Handling
|
3/4"
|
|
Switch
|
Tethered
|
|
Capacities (GPM)
|
80
|
|
Shut-off Head
|
32'
|
|
Liquids Handling
|
Domestic effluent and drain water
|
|
RPM
|
1650
|
|
Acceptable pH Range
|
5-9
|
|
Viscosity
|
28-35 SSU
|
|
Discharge, NPT
|
1-1/2
|
|
Housing
|
Cast iron
|
Item Number:
ME40A-11
Manufacturer:
Myers Pumps
Manufacturer Part No:
ME40A-11
|
|
|
