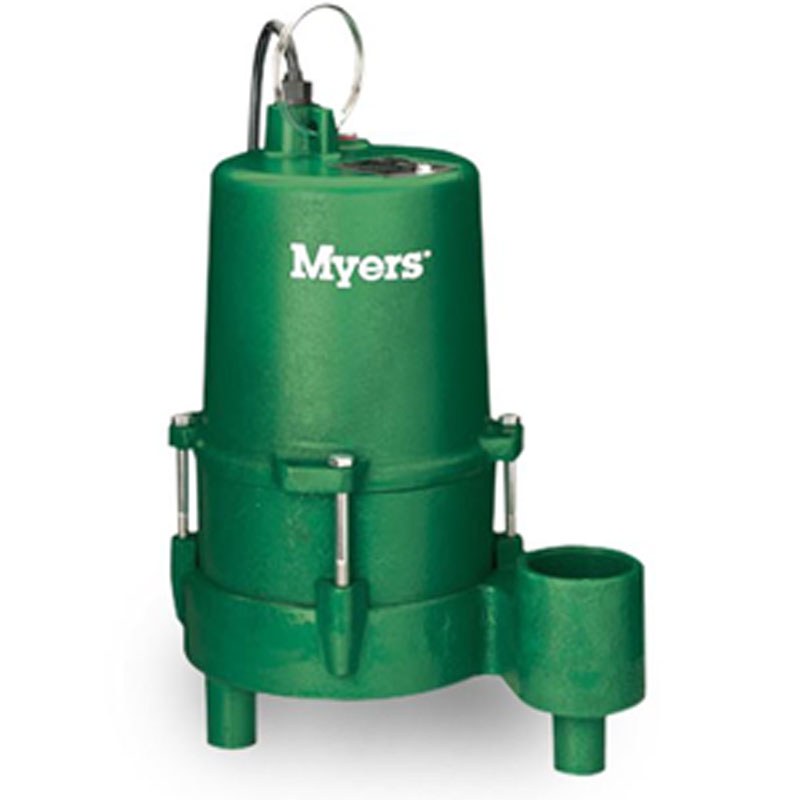

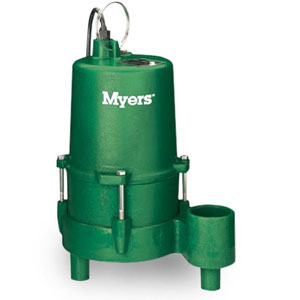

ME45MC-11 50 Myers Submersible Effluent Pump (1 Phase, 115 Voltage, 50' Cord Length, 2" Discharge, Manual Switch)
| Applications |
| Effluent removal, sump drainage, water transfer, flood control |
| |
| Features |
| Powerful Torque: High-torque, permanent split capacitor (PSC) motor; no starting switches or relays to wear out |
|
| Rugged and Cool: Rugged-built, oil-filled motor for continuous bearing lubrication and maximum heat dissipation |
|
| Seal Protection: Upper and lower ball bearing and heavy duty Type 6 seal for added pump life |
|
| Thermal Protection: Heat sensor overload protection with automatic reset when motor cools to a safe operating temperature |
|
|
Specifications
|
|
Brand
|
Myers
|
|
Catalog Number
|
ME45MC-11 50
|
|
Type
|
1/2 HP Cast Iron Submersible Effluent Pump
|
|
Series
|
ME45
|
|
HP
|
1/2
|
|
Phase
|
1
|
|
Voltage
|
115
|
|
Cord Length
|
50'
|
|
Discharge
|
2"
|
|
Solids Handling
|
3/4"
|
|
Switch
|
Manual
|
|
Capacities
|
87 GPM
|
|
Shut-off Head
|
44
|
|
Max. Spherical Solids
|
3/4
|
|
Liquids Handling
|
Domestic effluent and drain water
|
|
RPM
|
3450
|
|
Acceptable pH Range
|
5-9
|
|
Specific Gravity
|
.9-1.1
|
|
Viscosity
|
28-35 SSU
|
|
Discharge, NPT
|
2
|
|
Housing
|
Cast iron
|
Item Number:
ME45MC-11 50
Manufacturer:
Myers Pumps
Manufacturer Part No:
ME45MC-1150
|
|
|
