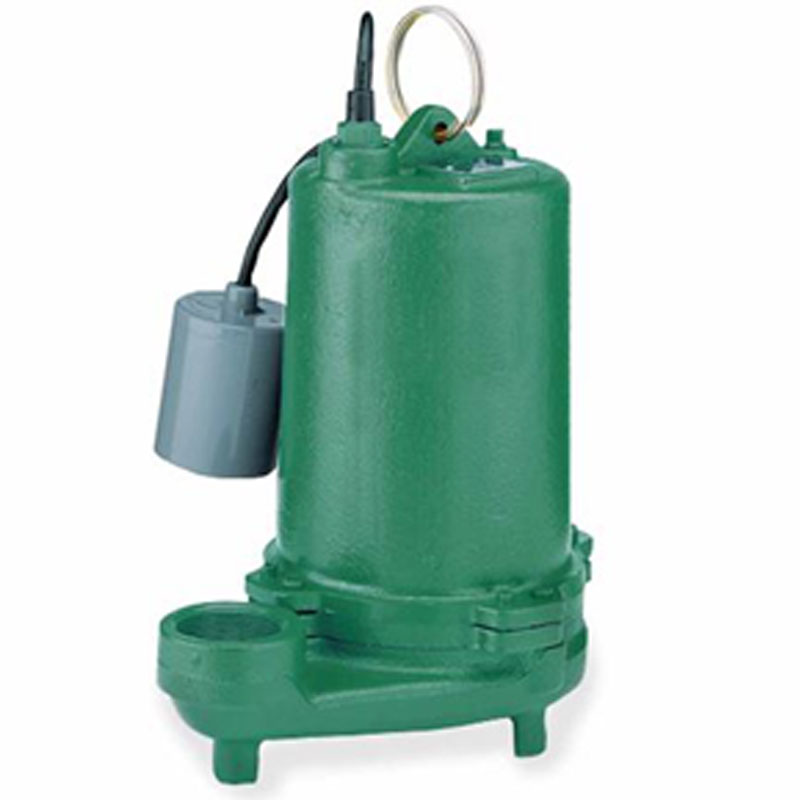

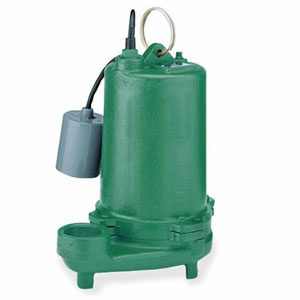

ME750220M Myers Submersible Effluent Pump (1/2 HP, 1 Phase, 230 Voltage, 20' Cord Length, 3/4" Solids Handling, Manual Switch)
| Applications |
| Effluent and Wastewater, Removal, Sump Drainage, Dewatering, Flood Control |
| |
| Features |
| Bearing and Mechanical Seal Permanently lubricated for long life. |
|
| Overload Protection Built-in thermal overload with automatic reset. |
|
| Cord Design Prevents oil loss from and moisture protection for motor. |
|
| Serviceability Heavyduty lift-out ring, field serviceable. |
|
| Solids Handling 3/4 spherical capability. |
|
| Stainless Steel Hardware - Allows for easy disassembly after extended service. |
|
| Controls Standard controls available for automatic operation. |
|
| Float Mechanical (non mercury). |
|
|
Specifications
|
|
Brand
|
Myers
|
|
Catalog Number
|
ME750220M
|
|
Type
|
Cast Iron Submersible Effluent Pump
|
|
Series
|
ME7
|
|
HP
|
1/2
|
|
Phase
|
1
|
|
Voltage
|
230
|
|
Cord Length
|
20'
|
|
Discharge
|
2"
|
|
Solids Handling
|
3/4"
|
|
Switch
|
Manual
|
|
Capacities
|
110 GPM
|
|
Shut-off head
|
58
|
|
RPM
|
3450
|
|
Acceptable pH range
|
6-9
|
|
Motor housing
|
Cast Iron
|
|
Volute case
|
Cast iron
|
|
Impeller
|
Cast iron Vortex
|
|
Discharge, NPT
|
2
|
Item Number:
ME750220M
Manufacturer:
Myers Pumps
Manufacturer Part No:
ME750220M
|
|
|
