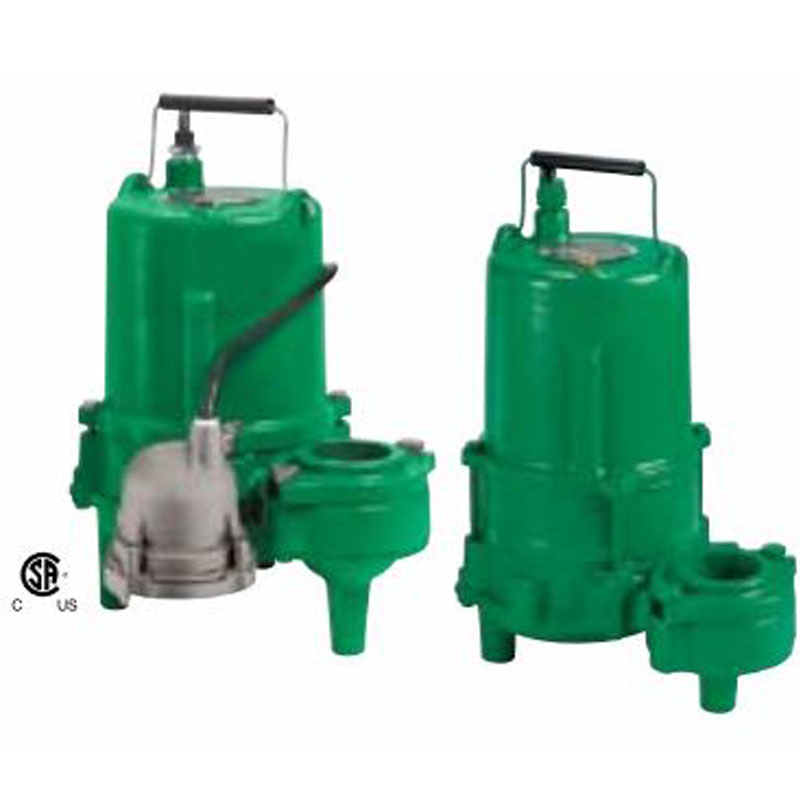

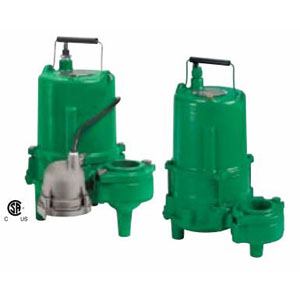

28215D001 Myers High-Head Submersible Effluent Pump (1/2 HP, 1 Phase, 115 Voltage, 3/4" Solids Handling, Piggy Back Diaphragm Switch)
| Applications |
| The MESPD50/100H are completely submersible, high-head, dual-seal pumps for use in septic tank effluent applications. |
| |
| Features |
| Two (2) carbon/ceramic type 21 mechanical seals mounted in tandem |
|
| Oil-filled motor with automatic resent thermal overload for maximum protection (single phase models) |
|
| Capacitor start for increased starting torque (single phase models) |
|
| Water-resistant power cord has a compression-fit connection and an epoxy potting for double protection against water entry. Lengths of 10 and 20 feet are available with molded plugs, depending on model variations. |
|
| High-quality cast iron construction of pump volute, motor housing and seal housing provides long life. |
|
|
Specifications
|
|
Brand
|
Myers
|
|
Catalog Number
|
MESPD50AH1 20
|
|
Type
|
High-Head Dual Seal Submersible Effluent Pump
|
|
Series
|
MESPD
|
|
ENG. NO.
|
28215D001
|
|
HP
|
1/2
|
|
Phase
|
1
|
|
Voltage
|
115
|
|
Cord Length
|
20
|
|
Discharge
|
2" or 3"
|
|
Solids Handling
|
3/4"
|
|
Switch
|
Piggy Back Diaphragm
|
|
RPM
|
3450
|
Item Number:
MESPD50AH1 20
Manufacturer:
Myers Pumps
Manufacturer Part No:
28215D001
|
|
|
