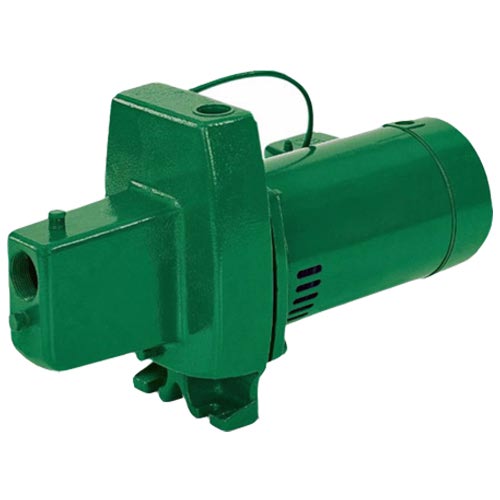

MFNC Myers Pumps Cast Iron Self-Priming Shallow Well Jet Pumps (1/2 HP, 1-1/4" Suction, 1" Discharge)
| Applications |
| The MFN Series cast iron, self-priming shallow well jet pump provides strong performance with good pressure for wells to 25 deep. Self-priming after the priming chamber has been filled with water. Applications include: Water systems and sprinkling for home, farms, and cottages. |
| |
| Features |
| QUALITY CONSTRUCTION: Close-grained cast iron body and base, specially treated for corrosion resistance. Drain port provided for easy winterizing. |
|
| BUILT-IN JET: High-strength polycarbonate nozzle and venturi for maximum resistance to corrosion and abrasion. Clean out plug provided for ease of service. |
|
| NORYL IMPELLER: Precision-molded for perfect balance; ultra smooth for highest performance and efficiency. |
|
| PRECISION-MOLDED DIFFUSER: Pump primes faster, handles more air, with multi-port, precision-molded, reinforced polypropylene diffuser. |
|
| MECHANICAL SHAFT SEAL: Precision lapped and highly polished carbon-ceramic,stainless steel construction. Internal design guarantees continuous water lubrication. |
|
| MOTOR WINDINGS: Superior insulation materials protect against excessive moisture and contaminants assure prolonged motor life. |
|
| BALANCED ROTOR: Die cast under high pressures for uniform performance and greater efficiency, dynamically balanced. |
|
| HEAVY-DUTY BALL BEARINGS: Sealed, permanently lubricated bearings, extensively tested to ensure extended life and smooth, quiet operation. |
|
| PUMP AND MOTOR SHAFT: Stainless steel for maximum corrosion resistance; one piece threaded shaft for positive impeller drive and alignment. |
|
| DUST PROOF COVER: All electrical components are protected from dirt, dust and insects by a dust proof canopy; ventilating air cannot contaminate vital switching components. |
|
| PRESSURE SWITCH: Adjustable cut-in and fixed differential (20 psi). |
|
|
Specifications
|
|
Brand
|
Myers Pumps
|
|
Catalog Number
|
MFNC
|
|
Type
|
Cast Iron Self-Priming Shallow Well Jet Pumps
|
|
Series
|
MFN Series
|
|
HP
|
1/2
|
|
Switch Settings
|
30-50
|
|
Suction
|
1-1/4"
|
|
Discharge
|
1"
|
|
Motor Voltage
|
115/230
|
|
Approximate Weight (lbs)
|
46
|
|
Construction
|
Cast Iron
|
|
Impeller
|
Noryl
|
|
Max Liquid Temp.
|
140 F
|
|
Nozzle
|
High-strength polycarbonate
|
|
Venturi
|
Polycarbonate
|
|
Diffuser
|
Reinforced polypropylene
|
|
Shaft
|
One piece threaded stainless steel
|
|
Notes
|
See Support Documents
|
Item Number:
MFNC
Manufacturer:
Myers Pumps
Manufacturer Part No:
MFNC
|
|
|
