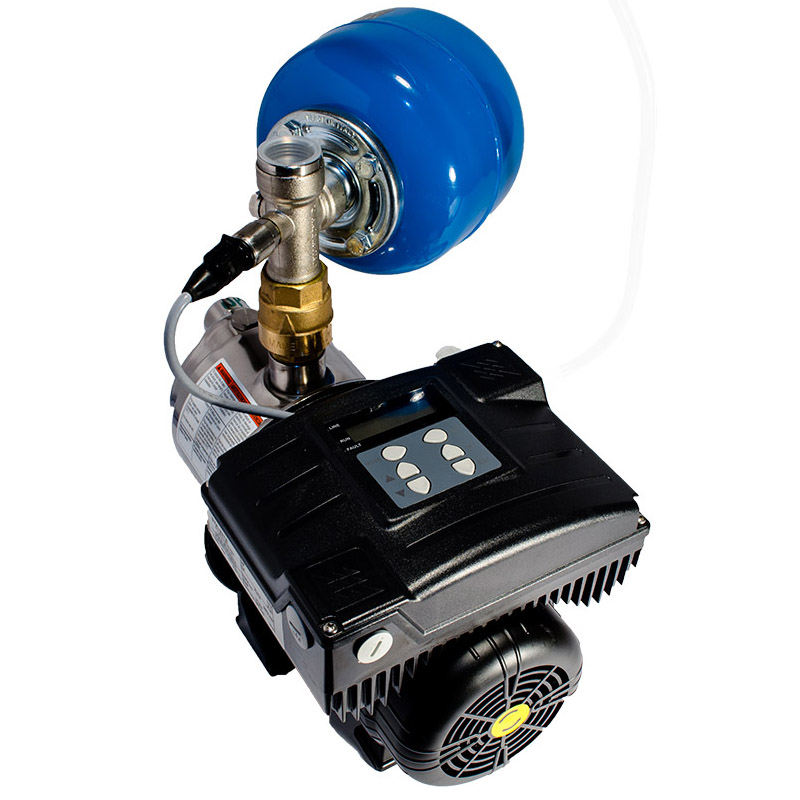

MIB0715B Berkeley Intelliboost Multi-Stage VFD Boosting Pump (3/4 HP, 230V, 1 Phase, 1" Suction, 1" Discharge)
Applications
The Berkeley Intelliboost is the only TRUE variable speed booster with an LCD screen that gives you an easy to use, all-in-one solution for not only boosting, but also delivering a constant pressure throughout the system. This dependable unit quickly enhances your customer’s system with smart controls that adjusts to their water usage.
Applications: Residential Boosting, Water Transfer, Turf Irrigation.
Features:
TRUE Variable Speed – The Intelliboost features a variable speed control that adjusts itself as demand changes to hold water pressure (up to 60psi) at the desired level.
All-In-One Unit – Includes pump, variable speed drive and tank all in one unit for quick and easy install.
Simple Startup – Unit is preset to boost 60PSI, allowing you to plumb it, wire it, power up and go!
Built-in Check Valve – Includes a check valve after the discharge to further protect your system.
LCD Screen – No blinking lights! The Intelliboost has an easy-to-read LCD screen that tells you the status of your unit in plain text.
Specifications:
HP: 3/4
Input Voltage: 230
Phase: 1
Suction: 1"
Discharge: 1"
Pump Case: Stainless Steel
Diffuser: Reinforced Polypropylene
Impeller: Reinforced Polypropylene
Mechanical Shaft Seal: Carbon, Ceramic,
Stainless Steel
Mounting Base: Steel
Support Documents:
Item Number:
MIB0715B
Manufacturer:
Berkeley Pumps
Manufacturer Part No:
MIB0715B
|
|
|
