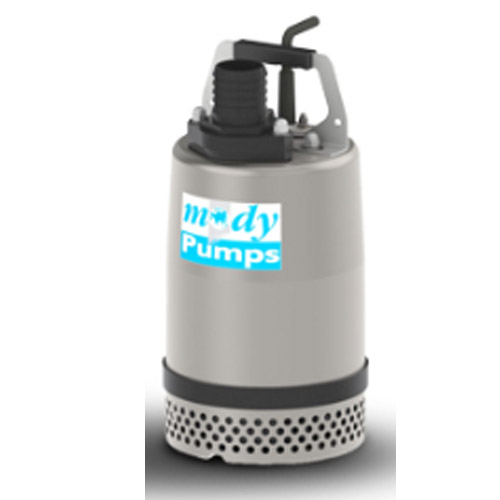

Mody Pumps Model M2 Portable Electric Submersible Sump Pump (2 HP, 2" NPT Discharge, 115 Volts)
|
Images may be generic. Please inquire
|
Your Price:
Call for Pricing
|
| Applications |
| PORTABLE ELECTRIC SUBMERSIBLE SUMP PUMPS FOR GENERAL DEWATERING APPLICATIONS |
| |
| Features |
| Stainless Steel Outer Casing, Stator Casing, Strainer, Shaft, and Hardware for maximum corrosion resistance. |
|
| Cast Iron Semi Open Abrasive Resistant Impeller. Double Silicon Carbide/Silicon Carbide and Carbon/Ceramic Mechanical seals. |
|
| External Oil Seal for added protection against abrasives. |
|
| Cast Iron Suction Diffuser |
|
| Automatic ON/OFF/ON Thermal Overloads in Motor |
|
| CLASS F Motor Insulation |
|
| Hi-Torque Single Phase Split Capacitor Motor design |
|
| CSA Approved |
|
| Built-in Float option available |
|
|
Specifications
|
|
Brand
|
Mody Pumps
|
|
Catalog Number
|
M2
|
|
Type
|
Submersible Sump Pump
|
|
Series
|
Mody Pumps M Series
|
|
HP
|
2
|
|
Discharge
|
2" NPT
|
|
RPM
|
3400
|
|
Rated Current
|
20 Amps
|
|
Volts
|
115
|
|
Phase
|
1
|
|
Solids Passage
|
1/4"
|
|
Height
|
17.25"
|
|
Weight (approx.)
|
24 lbs
|
|
Casing
|
Stainless Steel
|
|
Power Cable
|
33 ft.
|
|
Submergence
|
Min 2.8" / Max 65'
|
|
Hz
|
60
|
|
Max Temp
|
104 degrees F
|
|
Max Stop / Start Per Hr
|
15
|
|
MAX GPM
|
120 GPM
|
|
MAX Total Head (approx.)
|
65 Ft.
|
|
Notes
|
See Support Documents
|
Item Number:
M2
Manufacturer:
Mody Pumps
Manufacturer Part No:
M2
|
|
|
