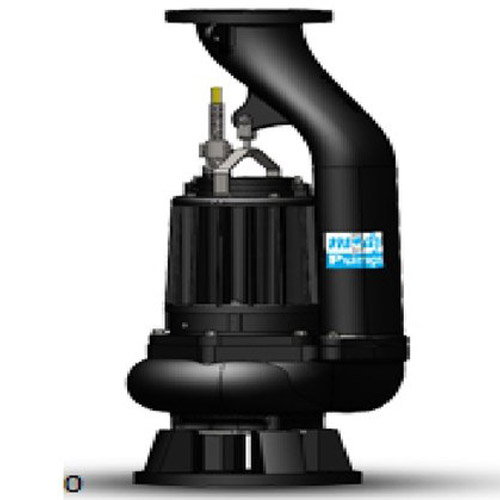

Mody Pumps Model # MH480 Portable Electric Submersible Sump Pump (10 HP, 6" Discharge, 1100 GPM Max GPM)
|
Images may be generic. Please inquire
|
Your Price:
Call for Pricing
|
| Applications |
| SUBMERSIBLE MANHOLE PUMP FOR MOBILE WET PIT SEWER BYPASS OPERATIONS |
| |
| Features |
| POWER CABLE: Waterproof/oil proof, rubber-insulated, neoprene-sheathed copper conductor flexible cable, 50ft. (15m) length standard. Type SOOW in North America, EPR in the Middle East and HO7RN in the EU. |
|
| SURFACE TREATMENT: Primer with Epoxy and subsequently coated with black chloric paint for max. corrosion resistance. pH Range 6 - 11. |
|
| COOLING: Integral cast cooling fins on motor casing with large surface area ensure efficient heat dissipation and low temperature rise. Shrink fitted stators and short shaft overhang facilitate cooling. |
|
| MOTOR: 4-pole induction continuous rated motor with squirrel cage rotor. Bi-metallic switches (thermals) embedded in stator winding to protect against overheating. Stator insulation class 'H' |
|
|
Specifications
|
|
Brand
|
Mody Pumps
|
|
Catalog Number
|
MH480
|
|
Type
|
Electric Submersible Sewage Pump
|
|
Series
|
MH 480 Series
|
|
HP
|
10
|
|
Discharge
|
6"
|
|
Max GPM
|
1100 GPM
|
|
Max Shut-Off Head
|
60 Ft.
|
|
Solid Handling
|
3"
|
|
Impeller Type
|
Channel
|
|
Power Sypply
|
230/380/460/575V
|
|
Max Starts / Stop Per Hr
|
15
|
|
Motor VFD Rated
|
4 Poles
|
|
Max Amps 460/400V
|
14/16
|
|
RPM
|
1750
|
|
Solid Handling
|
3"
|
|
Max Temperature
|
104 Degrees F.
|
|
Max Submergence
|
33'
|
|
Casing
|
Cast Alloy
|
|
Notes
|
See Support Documents
|
Item Number:
MH480
Manufacturer:
Mody Pumps
Manufacturer Part No:
MH480
|
|
|
