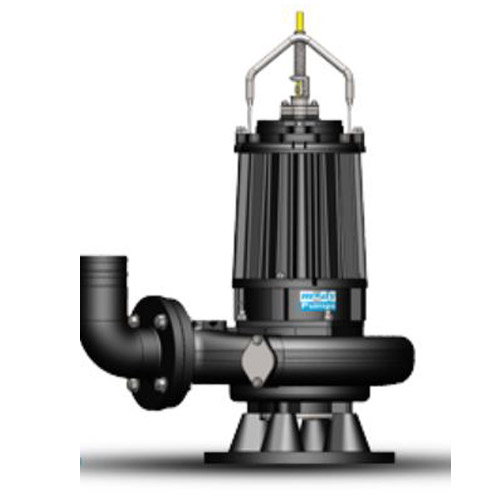

MS6150 Mody Submersible Sewage Pump (14 HP, 10" Discharge, 3700 Max GPM)
|
Images may be generic. Please inquire
|
Your Price:
Call for Pricing
|
| Applications |
| Submersible Sewage Pumps. |
| |
| Features |
| MOTOR: 6-pole induction continuous rated motor with squirrel cage rotor. Bi-metallic switches (thermals) embedded in stator winding to protect against overheating. |
|
| POWER SUPPLY: 3 phase, 50/60 Hz, AC Supply. Available in any voltage frequency combination.(208/220/230/380/415/460/575/1000V) |
|
| BALL BEARINGS: The rotor shaft is carried in two ball bearings. Double row contact lower bearing is capable of carrying high thrust and radial loads. Upper bearing is a deep groove single row oversized bearing. The bearings are enclosed with high temperature grease-containing special Anti-corrosion additive. |
|
| POWER CABLE: Waterproof/oil proof, rubber-insulated, neoprene-sheathed copper conductor flexible cable, 50ft. (15m) length standard. Type SOOW in North America, EPR in the Middle East and HO7RN in the EU. (4 core std., 7 core optional) |
|
| SHAFT SEALS: Compact Tandem Tungsten Carbide/Tungsten Carbide Upper & Lower Mechanical seals minimize shaft overhang and deflection maximizing mean time between service intervals. Moisture sensor available to detect progressive seal wear. |
|
|
Specifications
|
|
Brand
|
Mody Pumps
|
|
Catalog Number
|
MS6150
|
|
Type
|
Electric Submersible Sewage Pumps
|
|
Series
|
MS 6150 Series
|
|
HP
|
14
|
|
Discharge
|
10"
|
|
Max GPM
|
3700
|
|
Max Shut Off Head
|
17'
|
|
Solid Handling
|
4"
|
|
Impeller Type
|
Channel
|
|
Power Supply
|
230/380/460/575 Volts
|
|
Max Starts/Stop per hour
|
15
|
|
Motor- VFD rated
|
4 Poles
|
|
Phase
|
3
|
|
Hz
|
60
|
|
Flygt Pump Cross Reference
|
3152 LT
|
|
Construction
|
Cast Iron
|
|
Max Temp
|
104 Degrees F.
|
|
Max Submergence
|
33'
|
|
Approx. Weight
|
2000 Lbs.
|
|
Max Amps (FLA @ 460V
|
18
|
|
RPM
|
1160
|
|
Notes
|
See Support Documents
|
Item Number:
MS6150
Manufacturer:
Mody Pumps
Manufacturer Part No:
MS6150
|
|
|
