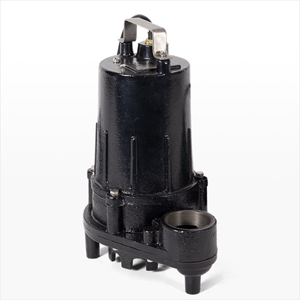

MTW20480 Ion Technologies Effluent Pump (ES45i-11 Model Number, 1/2 HP, 1 Phase, 115 Voltage, ION Pump Config, 2" Discharge Size, 20' Cord)
| Applications |
| This submersible cast iron effluent pump's typical applications are high head sump, dewatering and septic tank effluent. |
| |
| Features |
| Cast iron construction |
|
| Cast iron vortex impeller |
|
| Carbon ceramic mechanical seal |
|
| Automatic Reset Thermal Overload for Max Protection. |
|
| 3450 RPM Motor with Built-in Overload |
|
| Lower Single-Row-Ball Bearing Construction. |
|
| Recommended minimum Basin 18x30" |
|
|
Specifications
|
|
Brand
|
Ion Technologies
|
|
Catalog Number
|
MTW20480
|
|
Type
|
Submersible cast iron effluent pump, 3450 rpm with built-in overload. Automatic operation featuring a piggyback 6 range Ion switch.
|
|
Series
|
Effluent Pumps
|
|
Model Number
|
ES45i-11
|
|
HP
|
1/2
|
|
Phase
|
1
|
|
Voltage
|
115
|
|
Pump Config
|
ION
|
|
solids
|
3/4"
|
|
Discharge Size
|
2"
|
|
Cord Size
|
20'
|
|
Weight
|
48 lbs
|
|
Construction
|
Cast iron
|
|
Mechanical Seal
|
Carbon ceramic
|
|
Warranty
|
1-year
|
Item Number:
MTW20480
Manufacturer:
Ion Technologies
Manufacturer Part No:
ES45i-11
|
|
|
