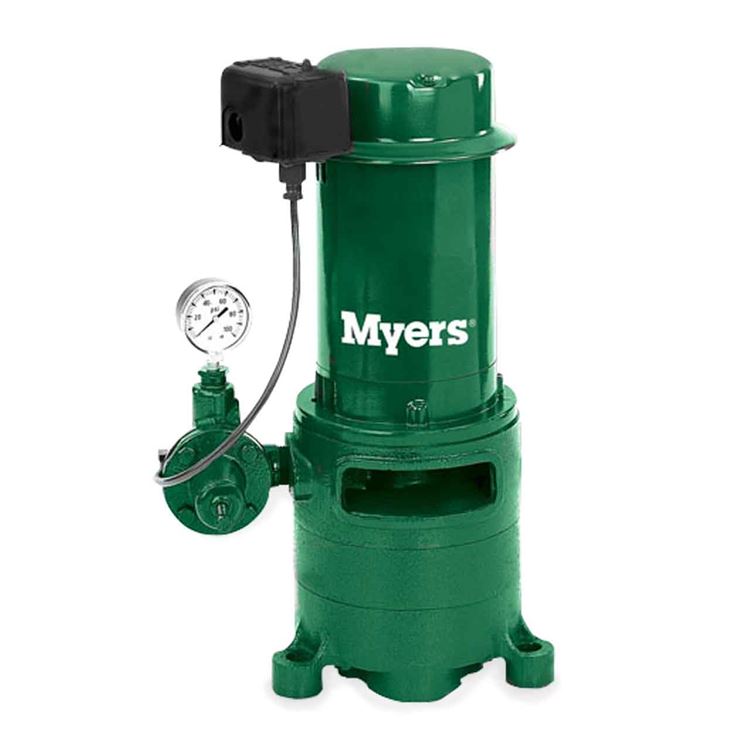

MVPH-100 Myers Pumps Vertical Deep Well Jet Pumps (1 HP, Volts, 1-1/4" Suction)
| Applications |
| Supply water systems and sprinkling systems for homes, farms and cottages. The MVPH Series Vertical Jet Pumps are the industry standard deep well jet pumps for overthe-well bolt-on installations. The MVPH Series Jet Pumps include the pre-plumbed external automatic regulator, pressure gauge, pressure switch, and a complete line of casing adapters for 4" double pipe, 2" or 3" single pipe jet packages. |
| |
| Features |
| Automatic Pressure Regulator Faster-acting and quieter, design eliminates hunting for correct drive pressure. New improved stem and guide are precisely molded to assure efficient, trouble-free performance on all deep wells. |
|
| Quality Construction Precision-machined, close-grained cast iron pump body and base are specially treated to resist corrosion. |
|
| Noryl Impellers Precision molded for perfect balance, and ultra-smooth for highest performance and efficiency. |
|
| Pressure Switch High quality. Differential and cut-in/ cut-out pressure settings are adjustable. |
|
| Motor Windings Superior insulation materials protect against excessive moisture and contaminants to ensure prolonged motor life. |
|
| Mechanical Shaft Seal Precision lapped and highly polished carbon-ceramic, stainless steel construction. Internal design guarantees continuous water lubrication for maximum protection. |
|
| Dustproof Cover All electrical components are protected from dirt, dust and insects by a dustproof canopy. Ventilating air cannot contaminate vital switching components. This eliminates the most common cause of motor failure. |
|
| Balanced Rotor Rotor is die cast under high pressures for uniform performance and greater efficiency; dynamically balanced. |
|
| Heavy-duty Ball Bearings Permanently lubricated sealed bearings are extensively tested to ensure extended life and smooth, quiet operation. |
|
| Pump and Motor Shaft One piece threaded shaft for positive impeller drive and alignment. Shaft is stainless steel for maximum corrosion resistance. |
|
|
Specifications
|
|
Brand
|
Myers Pumps
|
|
Catalog Number
|
MVPH-100
|
|
Type
|
VERTICAL MULTI-STAGE DEEP WELL JET PUMPS
|
|
Series
|
MVPH
|
|
Model
|
MVPH-100
|
|
HP
|
1
|
|
Volts
|
115/230
|
|
Description
|
Base Mounted Pump
|
|
Max Pressure Reg. Setting
|
60 PSI
|
|
Suction
|
1-1/4"
|
|
Drive
|
1-1/4"
|
|
Discharge
|
1"
|
|
Approx. Weight
|
73
|
|
ADAPTER FLANGE
|
J216-27 ( 1-1/4" x 1-1/4")
|
|
Length
|
18-3/8"
|
|
Construction
|
Rugged cast iron
|
|
Pump and Motor Shaft
|
416 Stainless Steel
|
|
Impellers
|
Noryl
|
|
Diffuser
|
Close-grained cast iron
|
|
Notes
|
See support documents
|
|
Pump Curves
|
See support documents below
|
Item Number:
MVPH-100
Manufacturer:
Myers Pumps
Manufacturer Part No:
MVPH-100
|
|
|
