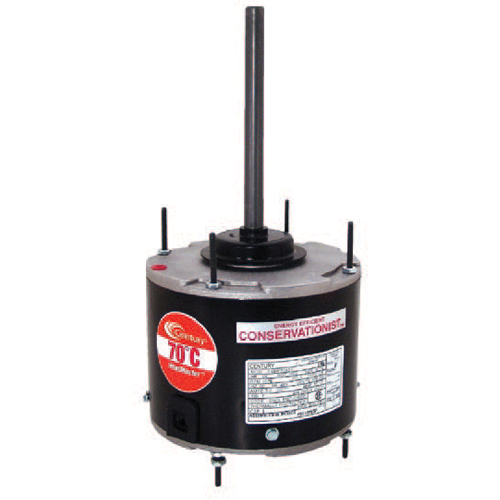

ORM5488F Century Heatmaster 4-IN-1 Motor (1/3-1/8 HP, 208-230 Volts, 2.1 Amps, 48 Frame Size, Reversible Rotation)
|
Images may be generic. Please inquire
|
Your Price:
Call for Pricing
|
| Applications | | CLASS F INSULATION - 70C (158F) MAX AMBIENT - MULTI-HORSEPOWER REPLACEMENT MOTORS. Easy installation, one capacitor (7.5MFD / 370V) and two leads. | | | | Features | | 70C (158F) max ambient | | | UL/CSA approved Class F insulation | | | High-temperature UL/CSA approved overload protector | | | All HeatMaster motors carry a warranty running until the sooner to occur of 2 years from the date of installation or 3 years from the date of manufacture | | | Energy-efficient PSC design | | | Water-resistant reversing plug | | | Double-sealed ball bearings, or dependable all-angle sleeve bearings | | | All-angle mount | | | Mounts by belly band, adjustable extended thru-bolts, or OEM compatible mounting holes, with screws supplied | | | 60 hertz | | | 1 speed | |
Specifications | Brand | A.O. Smith | Catalog Number | ORM5488F | Type | Multi HP Condesor Fan Motor | Series | HEATMASTER 4-IN-1 MOTORS | HP | 1/3-1/8 | Volts | 208-230 | Amps | 2.1 | RPM | 825 | Frame Size | 48 | Rotation | Reversible | Capacitor | 7.5MFD / 370V | Bearings | Sleeve | Shell Length | 4.86 Inches | Shaft Length | 1/2" x 6-1/2" | Warranty | 1 Year |
Item Number:
ORM5488F
Manufacturer:
Century
Manufacturer Part No:
ORM5488F
|
|
|
