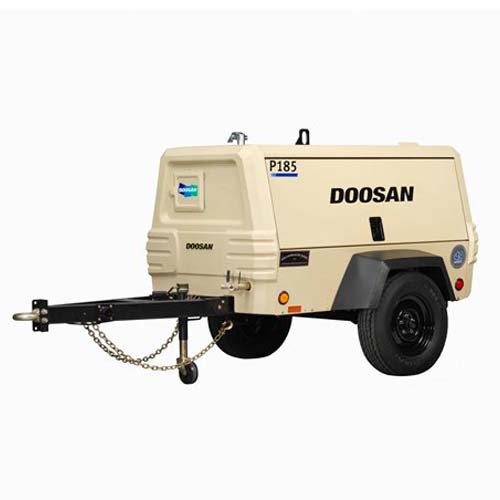

Powered by a Tier 4 Final-compliant Doosan engine, the P185WDO portable air compressor meets the needs of a variety of applications. The P185 is perfect for powering handheld air tools, sandblasting, sprinkler and irrigation line blow-out, and cable laying and pipeline testing.P185WDO-T4F Portable Air Compressor
Free-Air Delivery – cfm (m3/min)185 (5.2)
Rated Operating Pressure – psig (bar)100 (6.9)
Pressure Range – psig (bar) 80 – 125 (5.5 – 8.6)
Air Discharge Outlet Size – in (mm)0.75 (19)
Air Discharge Outlet Quantity2
Fuel Tank Capacity – gal (L)34.5 (130.6)
Limiting Ambient Temp F (Celsius)120 (48)
Make/ModelDoosan D24
Emissions Tier LevelTier 4 Final (T4F)
Number of Cylinders - 4
Displacement – cu in (L)147 (2.4)
Rated Speed – rpm 2600
Idle Speed – rpm 1700
Bhp @ Rated Speed (kW) 49 (36.4)
Electrical - volts 12
Hours of Operation @ Full Load12.2
Length – in (mm) 136.7 (3473)
Width – in (mm) 68.6 (1746)
Height – in (mm) 67.3 (1710)
Track Width – in (mm)60.3 (1530)
Tire Size – in 15
Shipping Weight – w/o fuel – lb (kg)2305 (1046)
Working Weight – w fuel – lb (kg)2551 (1157)
Dimensions without Running Gear
Length – in (mm) 88.5 (2248)
Width – in (mm) 49.3 (1252)
Height – in (mm) 56.3 (1431)
Shipping Weight – w/o fuel – lb (kg) 2095 (950)
Working Weight – w fuel – lb (kg) 2341 (1062)
Item Number:
P185WDO-T4F
Manufacturer:
Doosan
Manufacturer Part No:
P185WDO-T4F
