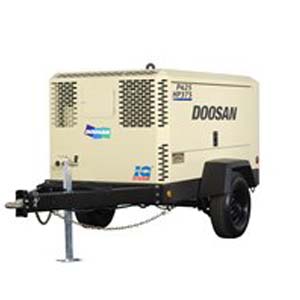

P425/HP375WCU-T4F Doosan Portable Air Compressor (425/375 CFM, 80-125 PSIG, 1.25" Discharge, Cummins/QSB4.5 Engine)

<< Previous in Doosan Small and Medium Portable Air Compressors Next in Doosan Small and Medium Portable Air Compressors >>

Images may be generic. Please inquire
Your Price: Call for Pricing
The two-in-one P425/HP375WCU-T4F portable air compressor from Doosan Portable Power delivers dual pressures with airflow ranging from 375 to 425 cfm and pressure ranging from 100 to 150 psi. The compact design and small footprint of the P425/HP375WCU-T4F air compressor is consistent with other portable air compressors offered by Doosan Portable Power. In addition to its compact size and dual pressure availability, the P425/HP375WCU-T4F air compressor can be mounted on truck beds for increased versatility, making it the idea compressor for a variety of markets and applications.

P425/HP375WCU-T4F Air Compressor

COMPRESSOR


**LOW PRESSURE / HIGH PRESSURE**

Free-Air Delivery - cfm (m³/min) 425 (12.0) / 375 (10.6)
Rated operating Pressure - psig (bar) 100 (7.0) / 150 (10.3)
Pressure range - psig (bar)80 - 125 (5.5 - 8.6) / 80 - 175 (5.5 - 12.1)
Air Discharge outlet size - in (mm) 1.25 (31.8) / 1.25 (31.75)
Air Discharge outlet Quantity - 1
Fuel Tank Capacity - gal (L) 60 (227) / 63 (227)
DEF Tank Capacity - gal (L) 5 (19) / 5 (19)
Hours of operation @ Full Load 10.9 / 10.6

ENGINE

Make/model Cummins/QSB4.5Cummins/QSB4.5
Emissions Tier Level Tier 4 Final (T4F)
Number of Cylinders 4
Displacement - cu in (L) 272 (4.5) / 272 (4.5)
Rated speed - rpm 2200 / 1950
Idle speed - rpm 1500
Bhp @ rated speed (kW) 130 (97) / 138 (102.9)
Electrical 24

DIMENSIONS w/ running gear

Length - in (mm) 152.5 (3874) / 152.5 (3874)
Width - in (mm) 78.2 (1986) / 78.2 (1986)
Height - in (mm) 69.9 (1775) / 69.9 (1775)
Track Width - in (mm) 66.6 (1692) / 66.6 (1692)
Tire size - in15
Shipping Weight - w/o fuel - lb (kg) 4470 (2027) / 4470 (2027)
Working Weight - w fuel - lb (kg) 5030 (2281) / 5030 (2281)

DIMENSIONS w/o running gear

Length - in (mm) 104.2 (2647)  / 104.2 (2647)
Width - in (mm) 60.7 (1542) / 60.7 (1542)
Height - in (mm) 61 (1549) / 61 (1549)
Shipping Weight - w/o fuel - lb (kg) 4207 (1908) / 4207 (1908)
Working Weight - w fuel - lb (kg) 4767 (2162) / 4767 (2162)
Item Number: P425/HP375WCU-T4F
Manufacturer: Doosan
Manufacturer Part No: P425/HP375WCU-T4F
