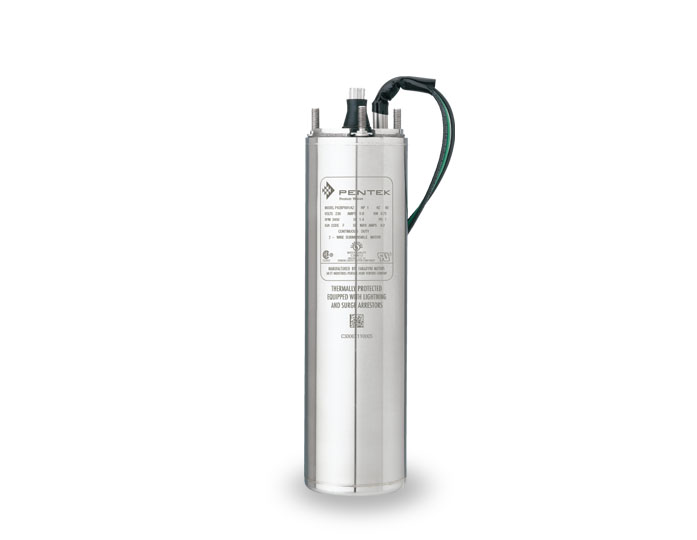

P43B0015A8-C PENTEK 4" Motor (1-1/2 HP, 200 Volts, 3 Phase)
| Applications | | Water systems for residential, industrial, commercial, multiple housing and farm clean water use. | | | | Features | | Large high-performance 700# Kingsbury thrust bearing design allow higher thrust loads | | | Designed to provide many years of service under severe-duty opration | | | All stainless-steel exterior | | | Professional-grade Class F compliant motor insulation allows for longer service life | | | Equipped with Surge Arrestor | | | Automatic Thermal Protection | | | Specifications | | Brand | STA-RITE | | Model Number | P43B0015A8 | | Type | 4" Submersible Motor | | Series | PENTEK XE Series | | HP | 1-1/2 | | kW | 1.1 | | Volts | 200 | | Phase | 3 | | Hz | 60 | | Service Factor | 1.3 | | Full Load Amps | 6.3 | | Max Load (SF Load Amps) | 7.2 | | Line to Line Resistance Ohms | 1.9-2.5 | | Locked Rotor Amps | 40.0 | | Thrust Rating | 700 | | Length In. | 11.7 | | Weight lbs. | 23.1 | | Notes | See Support Documents |
Item Number:
P43B0015A8-C
Manufacturer:
PENTEK
Manufacturer Part No:
P43B0015A8-C
|
|
|
