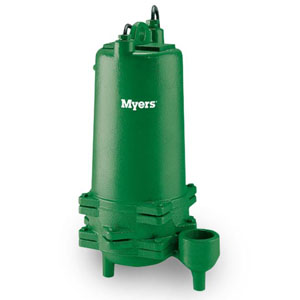

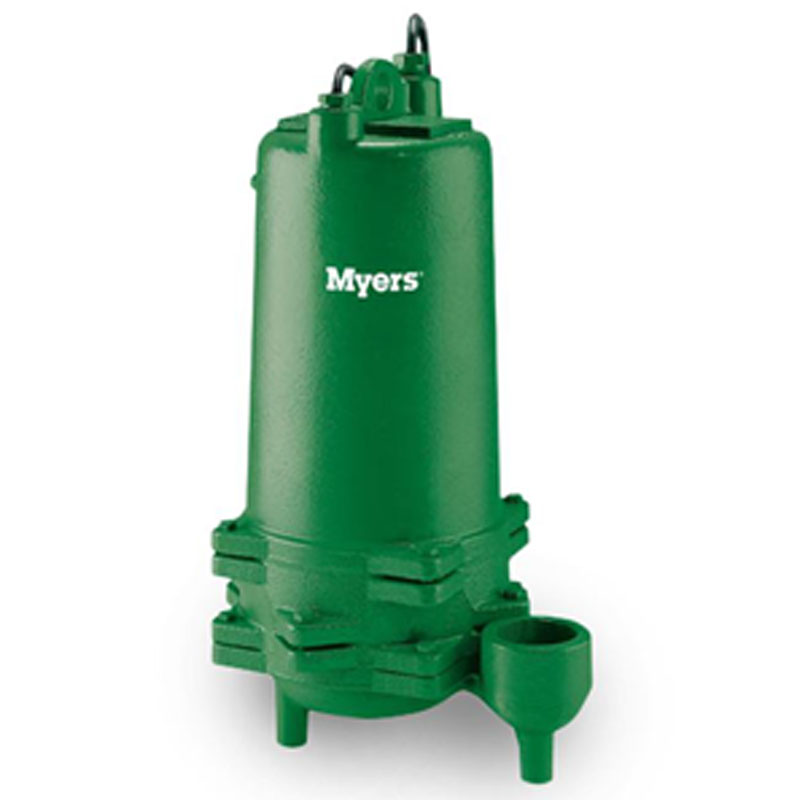

P52D Myers Effluent Pump (1/2 HP, 1 Phase, 230 Voltage, 20' Cord Length, 1-1/2" Discharge, Manual Switch)
| Applications |
| Effluent removal, sump drainage, water transfer, flood control |
| |
| Features |
| Rugged and Dependable: Durable, oil-filled motor for continuous bearing lubrication and maximum heat dissipation |
|
| Design Meets Demand: Single-vane, enclosed impeller provides steep, non-overloading performance curves for pressure collection and S.T.E.P. applications |
|
| Closed Case: Enclosed impeller eliminates jamming between impeller and volute engineered thermoplastic composition |
|
| Powerful Starts: High-torque, permanent split capacitor (PSC) motor; no starting switches or relays to wear out |
|
| No Burnout: On-winding current and temperature sensitive overload to protect against costly burnout |
|
| Thermal Failsafe: Heat sensor overload protection with automatic reset when motor cools to a safe operating temperature |
|
| Twice the Protection: Optional leak probe senses water leakage past seal (dual seal motors only) |
|
| Restore Performance: Original performance standards can be restored by easily replacing a worn volute seal ring |
|
|
Specifications
|
|
Brand
|
Myers
|
|
Catalog Number
|
P52D
|
|
Type
|
Cast Iron Effluent S.T.E.P. Pump
|
|
Series
|
P Series
|
|
ENG. NO.
|
25345D001
|
|
HP
|
1/2
|
|
Phase
|
1
|
|
Voltage
|
230
|
|
Cord Length
|
20'
|
|
Discharge
|
1-1/2"
|
|
Solids Handling
|
3/4"
|
|
Switch
|
Manual
|
|
Capacities
|
Up to 60 GPM
|
|
Shut-off Head
|
Up to 124
|
|
Max. Spherical Solids
|
3/4
|
|
Liquids Handling
|
Domestic, effluent and drain water
|
|
Acceptable pH Range
|
6-9
|
|
Specific Gravity
|
.9-1.1
|
|
Viscosity
|
28-35 SSU
|
|
Housing
|
Cast iron
|
|
Warranty
|
Limited 2 year warranty
|
Item Number:
P52D
Manufacturer:
Myers Pumps
Manufacturer Part No:
25345D001
|
|
|
