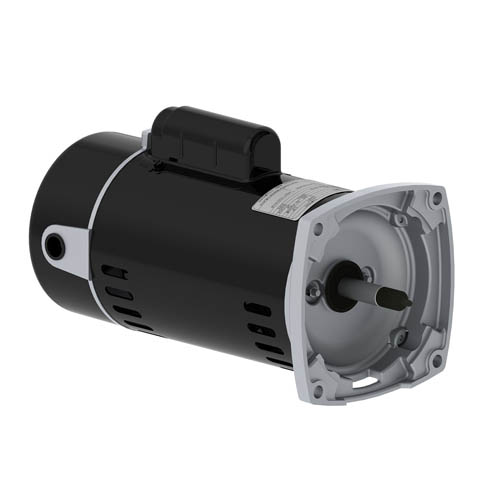

PCQ120 WEG Motor, Spa Pump (2 HP, M48Y FRAME, 230 V, SINGLE PHASE, ODP , 3460 RPM)
|
<< Previous in WEG Pool and Spa Pump Motors, Single Phase, ODP, Square Face, Start Capacitor, Low Service Factor
|
Next in WEG Pool and Spa Pump Motors, Single Phase, ODP, Square Face, Start Capacitor, Low Service Factor >>
|
| Applications |
| Pool and Spa |
| |
| Features |
| Spa Pump Motors, Single Phase, Rolled Steel, Standard Efficiency, ODP |
|
Tech Specs
|
|
Brand
|
WEG Motors
|
|
Model Number
|
PCQ120
|
|
HP
|
2 HP
|
|
RPM
|
3460
|
|
FRAME
|
M48Y
|
|
VOLTAGE
|
230 V
|
|
PHASE
|
SINGLE
|
|
FREQUENCY
|
60 Hz
|
|
ENCLOSURE
|
ODP
|
|
APPROXIMATE WEIGHT (lb)
|
28
|
|
FEET
|
NO
|
|
TERMINAL BOX
|
LEFT
|
|
FLANGE
|
FC-149
|
|
RATED CURRENT
|
9.30 A
|
|
LOCKED ROTOR CURRENT IL IN
|
5.9
|
|
LOCKED ROTOR CURRENT
|
54.9 A
|
|
LOCKED ROTOR TORQUE
|
1.3
|
|
BREAKDOWN TORQUE
|
2.3
|
|
EFFICIENCY 50
|
68
|
|
EFFICIENCY 75
|
74
|
|
EFFICIENCY 100
|
76.6
|
|
POWER FACTOR 50
|
0.8
|
|
POWER FACTOR 75
|
0.88
|
|
POWER FACTOR 100
|
0.91
|
|
SERVICE FACTOR
|
1.1
|
|
INERTIA KGM2
|
0.00170 kgm
|
|
INERTIA SQ FT
|
0.04034 sq.ft.
|
|
LOCKED ROTOR TIME
|
6 s
|
|
NOISE LEVEL
|
-
|
|
ALTITUDE
|
1000
|
|
DUTY CYCLE
|
S1
|
|
AMBIENT TEMPERATURE
|
-20C - +50C
|
|
DEGREE OF PROTECTION
|
IP21
|
|
NO-LOAD CURRENT
|
3.90 A
|
|
INSULATION CLASS
|
B
|
|
FULL LOAD TORQUE NM
|
4.06 Nm
|
|
FULL LOAD TORQUE FT
|
2.99 .ft
|
|
SLIP
|
0.0389
|
|
DESIGN
|
-
|
|
TEMPERATURE RISE
|
80 K
|
|
BEARINGS D E
|
6203 2RS
|
|
BEARINGS N D E
|
6203 ZZ
|
|
REGREASING INTERVAL D E
|
-
|
|
REGREASING INTERVAL N D E
|
-
|
|
GREASE AMOUNT D E
|
-
|
|
GREASE AMOUNT N D E
|
-
|
|
|
|
|
|
|
Item Number:
PCQ120
Manufacturer:
WEG
Manufacturer Part No:
PCQ120
|
|
|
