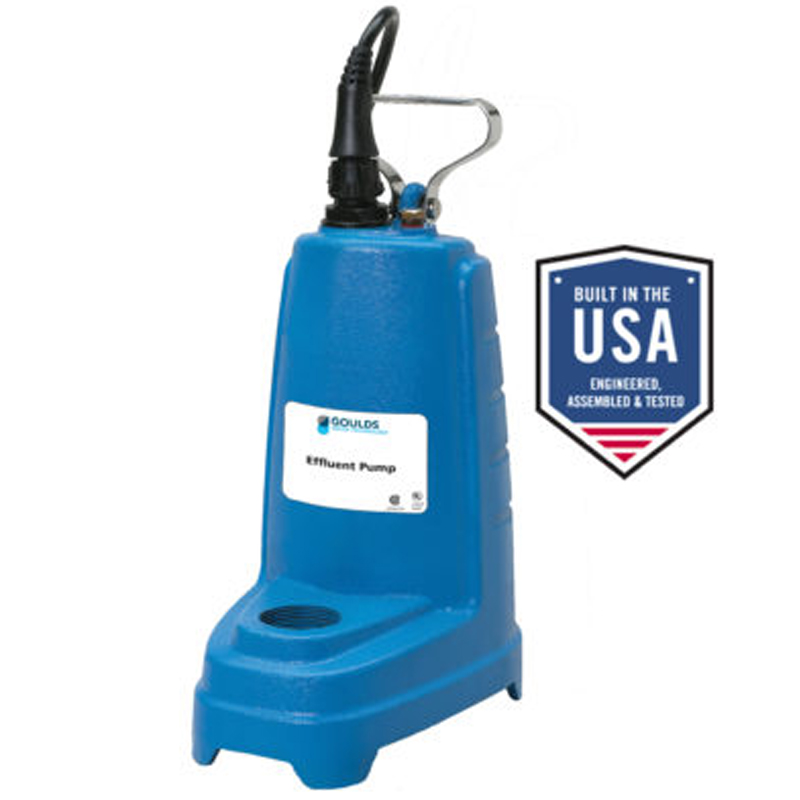

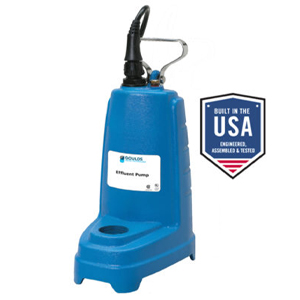

Goulds Pumps PE51M Submersible Effluent Pump (1/2 HP, 115 Volts, 1 Phase, 1-1/2" NPT Discharge, Manual, 20 ft. Cord)
|
Images may be generic. Please inquire
|
Your Price:
Contact Us For a Quote
|
| Applications |
| Specially designed for the following uses: On-site wastewater treatment, Mound Systems, Effluent/Dosing Systems, Low Pressure Pipe Systems, Basement Draining, Heavy Duty Sump/Dewatering. Residential Wastewater |
| |
| Features |
| Built-in thermal overload protection with automatic reset. |
|
| Corrosion resistant construction and Cast iron body |
|
| Thermoplastic impeller and cover |
|
| Upper sleeve and lower heavy duty ball bearing construction |
|
| Motor is permanently lubricated for extended service life |
|
| Powered for continuous operation |
|
| All ratings are within the working limits of the motor |
|
| Quick disconnect power cord, 20? standard length, heavy duty 16/3 SJTW with NEMA 5-15P, three prong, 115 volt grounding plug |
|
| Complete unit is heavy dury, portable and compact |
|
| Mechanical seal is carbon, ceramic, BUNA and stainless steel |
|
| Stainless steel fasteners |
|
|
Specifications
|
|
Brand
|
Goulds
|
|
Catalog Number
|
PE51M
|
|
Type
|
Submersible Effluent Pumps
|
|
Series
|
PE
|
|
Application
|
Wastewater treatment
|
|
HP
|
1/2
|
|
Voltage
|
115
|
|
Amps
|
9.5
|
|
Min. Circuit Breaker
|
20
|
|
Phase
|
1
|
|
Float Style
|
Manual / No Switch
|
|
Cord
|
20'
|
|
Discharge (NPT)
|
1.5"
|
|
Minimum Basin Diameter
|
18"
|
|
Maximum Solids Size
|
.5"
|
|
Max GPM
|
70
|
|
Max TDH (Ft.)
|
37
|
|
Operation
|
Manual
|
|
Pump Body
|
Cast iron
|
|
Impeller Material
|
Thermoplastic
|
|
Flow at 5 ft
|
N/A
|
|
Flow at 10 ft
|
67 gpm
|
|
Flow at 15 ft
|
59 gpm
|
|
Flow at 20 ft
|
50 gpm
|
|
Flow at 25 ft
|
39 gpm
|
|
Flow at 30 ft
|
26 gpm
|
|
Flow at 35 ft
|
8 gpm
|
|
Motor Design
|
PSC (Permanent Split Capacitor)
|
|
Motor Insulation
|
Class B
|
|
Thermal Protection
|
Yes
|
|
Maximum Temperature
|
104°F
|
|
Notes
|
See Support Documents
|
Item Number:
PE51M
Manufacturer:
Goulds Pumps
Manufacturer Part No:
PE51M
|
|
|
