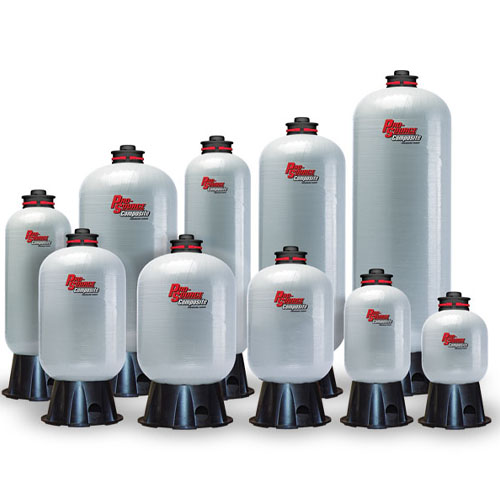

PSC-48-14 Berkeley ProSource Fibrewound Pressure Tank (48 Gal Tank Capacity)
| Applications |
| Use wherever pressurized tanks are needed in water systems applications. |
| |
| Features |
| Durable Composite |
|
| Construction A rugged one-piece molded, inner-liner of premium highdensity polyethylene. |
|
| Miles of continuous overlapping fiberglass strands, sealed with oven cured epoxy make the outer-shell impervious to rust, dents, and ultra-violet rays. No paint to scratch and touch-up. |
|
| Air Cell The air cell is molded from durable and extensively tested butyl. |
|
| Butyl is resistant to chlorine. |
|
| Butyl will not support iron bacteria growth that may be present in the water supply. |
|
| PRO-Source Composite Fibrewound Pressure Tank assembly is classified to ANSI/NSF Standard 61 for water system components. |
|
| Stainless Steel Service Connection 300 grade, the professionals choice |
|
| Maximum Operating Pressure = 125 PSI |
|
| Certified to ANSI/NSF 61, Drinking Water System Components |
|
| PRO-Source is a trademark of Pentair Water. |
|
|
Specifications
|
|
Brand
|
Berkeley
|
|
Catalog Number
|
PSC-48-14
|
|
Type
|
Fibrewound Pressure Tanks
|
|
Tank Capacity (Gal./Liter)
|
48 / 181.6
|
|
Tank Diameter (Inch/cm)
|
21 / 53
|
|
Tank Height (Inch/cm)
|
43.6 / 110.7
|
|
Discharge Tapping (Inch/cm)
|
1.25 / 3.1
|
|
Water Yield Per Pump Cycle Pressure Switch Setting
|
20-40 Gal./Liter (17.2 / 65.1)
|
|
Water Yield Per Pump Cycle Pressure Switch Setting
|
30-50 Gal./Liter (14.6 / 55.2)
|
|
Water Yield Per Pump Cycle Pressure Switch Setting
|
40-60 Gal./Liter (12.6 / 47.6)
|
|
Maximum Internal Water Temperature
|
120 Degrees F.
|
|
Maximum Ambient Air Temperature
|
120 Degrees F.
|
|
Outer Shell
|
Fiberglass-wound, oven-cured, and epoxy resin sealed
|
|
Inner Liner
|
One-piece highdensity polyethylene
|
|
Exclusive Air Cell
|
Heavy gauge butyl, meets Water Quality Association standards
|
|
Base
|
Rotatable base
|
|
Service Connection
|
Stainless steel, 300 grade
|
|
Notes
|
See support documents below
|
Item Number:
PSC-48-14-02
Manufacturer:
Berkeley Pumps
Manufacturer Part No:
PSC-48-14
|
|
|
