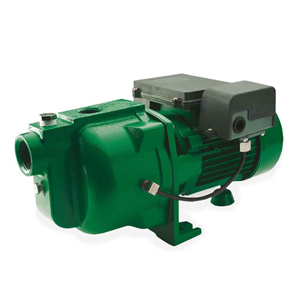

QD100S Myers Shallow Well Jet Pump (1 HP, 27 Max GPM, 1-1/4" NPT Suction, 115/230 Voltage, Cast Iron Body, Quick Draw Series)
| Applications |
| home, farm, commercial and industrial |
| |
| Features |
| Large capacity top suction case, internal priming plate, and separate priming plug on case add up to Quick and Easy Priming |
|
| Dual voltage motor with protection from moisture, insect, or dirt damage to electrical components for maximum life |
|
| Maximum pressures to 70 psi; flow capabilities to 23 GPM. |
|
| Convenient back pullout design along with nozzle clean-out mean easy serviceability |
|
| Precision lapped and polished carbon/ceramic shaft seal with buna and stainless steel components |
|
| Direct mount pressure switch is factory preset to 30-50 psi |
|
| Flow at 10' LIFT and 40 PSI: 12.0 GPM (average - model QD100S) |
|
| Recommended Breaker: Voltage and Model Dependent |
|
| Impeller: Precision-molded thermoplastic |
|
| Pressure Switch Setting: 30 - 50 PSI |
|
|
Specifications
|
|
Brand
|
Myers
|
|
Catalog Number
|
QD100S
|
|
Type
|
Shallow Well Jet Pump
|
|
Series
|
Quick Draw
|
|
HP
|
1
|
|
Max GPM
|
27
|
|
Max Lift (Ft.)
|
25
|
|
Shut Off Pressure
|
65 PSI
|
|
Suction
|
1-1/4" NPT
|
|
Discharge Size
|
1" NPT
|
|
Voltage
|
115/230
|
|
Hz
|
60
|
|
Body Construction
|
Cast Iron
|
|
Notes
|
See Support Documents
|
Item Number:
QD100S
Manufacturer:
Myers Pumps
Manufacturer Part No:
QD100S
|
|
|
