S10020N1 Goulds SIMPLEX PANEL NEMA 1, 115/230 Volts, 1 Phase, 0-20 Amps

FEATURES

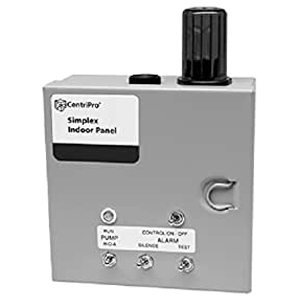

Goulds Centripro Indoor Simplex Control Panel

Designed for indoor simplex pump application where automatic electrical cycling of the pump is desired for added protection in residential or commercial applications. A Control Panel is required for all systems using a nonautomatic pump. The built-in alarm system, a standard feature, will activate when the water level becomes unusually high.

Features

• Indoor, no modification available

• Single phase with a range of 0-20 Amps

• High level alarm circuit includes spring loaded through door-mounted silence switch for manual silence of alarm horn

• Through door mounted alarm test switch insures proper operation of the alarm circuit without the need to open the panel

• Through door mounted pump run light

• Top mounted high intensity flashing red light provides 360° visibility

• Pulsating, corrosion proof alarm horn

• Color coded wiring, screw type terminals and plug in sockets, insure ease of field servicing

• Field wiring diagram, panel schematic and installation instructions included

• Entire unit is UL and CUL listed

Application

• Sump

• Effluent

• Sewage

• Water transfer applications

Note: Not for use in damp, outdoor, or weatherproof applications.
