S10P4HS05221-03 Sta-Rite 4" Submersible Well Pump & Motor, HS Series (1/2 HP, 230 Volts, 1 Phase, 2 Wire, 8 Stages, 1-1/4" NPT Discharge)

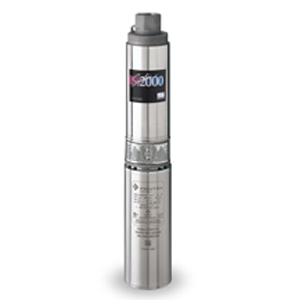

 Sta-Rite HS Series 4 in. Submersible Well Pump

This precision-engineered, high-quality, rugged Signature 2000 pump delivers efficient, dependable performance even in rough,
aggressive water. Built to deliver long-term trouble-free service, this pump has a floating impeller design that resists sand and reduces sand locking.

Package includes:

Pump end: L10P4CH-07
Motor: P42B0005A2-01-C

Features:

SignaSeal staging system incorporates a harder-than-sand ceramic wear surface and a floating impeller design - which together literally pulverize sand and small debris. This proven feature reduces lock-ups, dry-runs, and abrasive wear
Floating stage design is engineered to transmit forces away from the motor bearing and through the pump housing. This reduces premature wear and misalignment
Fully-enclosed shaft bearing creates a pressure zone that prevents sand and water from entering. Eliminates wear and misalignment
Wear ring forms a seal between impeller hub and suction cap for low friction and no unwanted recirculation of water
Discharge made of corrosion resistant 300 grade stainless steel for durability in aggressive water
Large octagon wrench area for ease of installation
Discharge bearing built with exclusive self-lubricating Nylatron to resist wear from sand
All screws, washers and nuts are corrosion-resistant 300 grade stainless steel
Durable internal spring-loaded check valve
Cable guard made of corrosion-resistant stainless steel to protect motor leads. Tapered ends prevent pump from catching on well
Coupling is stainless steel. Couples to all standard NEMA motors
Intake screen made of corrosion-proof stainless steel
2 wire NEMA standard stainless construction water-filled motor
CSA listed
Applications

Ideal to be used in water systems for:

Residential
Industrial
Commercial
Multiple housing
Farm
This item has one-year limited warranty.
