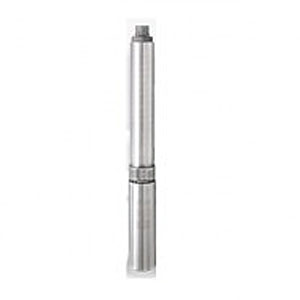

S7P4HS15231-02 Sta-Rite 4" Submersible Pump and Motor (1 1/2 HP, 22 Stages, 1 PH, 3 Wire, 230 Volt, 7 GPM)
| Applications |
| Applications: Water Supply: for residential, industrial, commercial, multiple housing and farm use. |
| |
| Features |
| Proven Staging System: Our proven SignaSeal staging system incorporates a harder-than-sand ceramic wear surface that when incorporated with our floating impeller design, greatly reduces problems with abrasives, sand lock-up and running dry. |
|
| Discharge Bearing: Self-lubricating Nylatron bearing resists wear from sand. |
|
| Shaft: Positive drive from 7/16" hexagonal heavy-duty 300 grade stainless steel. |
|
| Coupling: Stainless steel press fit to pump shaft, which couples to all standard NEMA motors. |
|
| Shell: 300-grade, heavy-walled corrosion-resistant stainless steel. |
|
| Hardware: All screws, washers and nuts are corrosion-resistant 300 grade stainless steel. |
|
| Pentek XE Series Motor: Our powerful, encapsulated submersible 2 and 3 wire motors drive all of our Sta-Rite pumps. These powerful motors have been proven over the years with over a million motors installed across the world! |
|
|
Specifications
|
|
Brand
|
Sta-Rite
|
|
Catalog Number
|
S7P4HS15231
|
|
Type
|
4" SUBMERSIBLE PUMPS
|
|
Series
|
HS Series
|
|
HP
|
1 1/2
|
|
Stages
|
22
|
|
PH
|
1
|
|
Wire
|
3
|
|
Volt
|
230
|
|
Length (in.)
|
42
|
|
GPM
|
7
|
|
Pump End
|
L7P4FHL
|
|
Motor End
|
P43B0015A2-C
|
|
Pump Construction
|
corrosion-resistant stainless steel
|
|
Contents
|
Pump and motor
|
|
Weight lbs.
|
47
|
|
Warranty
|
1 Year Warranty
|
Item Number:
S7P4HS15231-02
Manufacturer:
Sta-Rite Pumps
Manufacturer Part No:
S7P4HS15231
|
|
|
