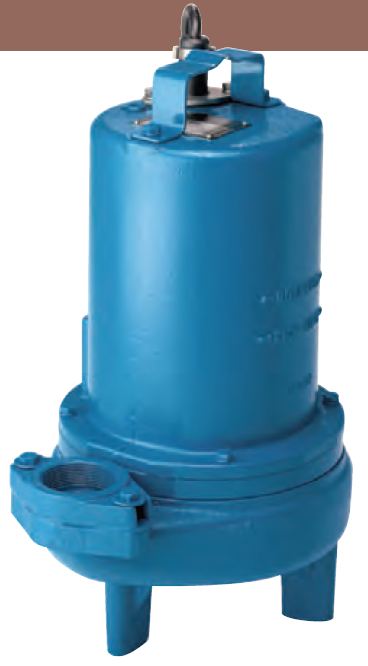

096747 Barnes Submersible Effluent Pump (SE411, 0.4 HP, 115 VOLT, 2" NPT Discharge, 1750 RPM)
|
Images may be generic. Please inquire
|
Your Price:
Call For Availability
|
| Applications |
| PUMP IS DESIGNED FOR HANDLING SEWAGE EFFLUENT IN TYPICAL SEPTIC TANK/EFFLUENT APPLICATIONS. |
| |
| Features |
| Cast Iron Construction. |
|
| Cast Iron Impeller. |
|
| Inboard Seal Design, ideal for agricultural use. |
|
|
Specifications
|
|
Brand
|
Barnes Pumps
|
|
Part Number
|
096747
|
|
Type
|
Effluent Pump
|
|
Series
|
Submersible Effluent Pump Series SE
|
|
Catalog Number
|
SE411
|
|
HP
|
0.4
|
|
VOLT
|
115
|
|
PH/Hz
|
1 / 60
|
|
Discharge (In)
|
2" NPT
|
|
Automatic
|
No
|
|
RPM (Nom)
|
1750
|
|
NEMA START CODE
|
C
|
|
FULL LOAD AMPS
|
12
|
|
LOCKED ROTOR AMPS
|
19
|
|
CORD SIZE
|
14/3
|
|
CORD TYPE
|
SJTOW
|
|
CORD O.D inch (mm)
|
0.375 (9.50)
|
|
Warranty
|
1 Year
|
|
Notes
|
See Support Documents
|
Item Number:
96747
Manufacturer:
Barnes Pumps
Manufacturer Part No:
SE411
|
|
|
