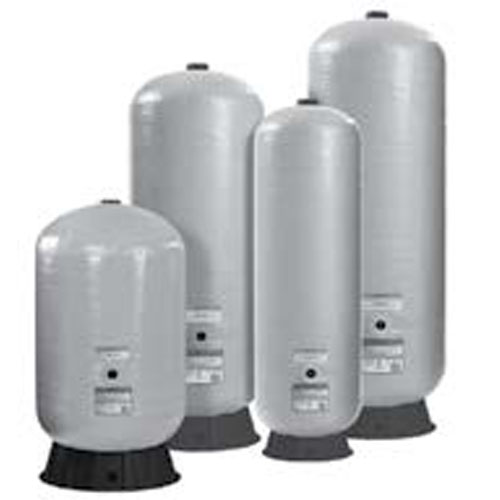

SP-26 PRO-SOURCE SidePort Contact Tank (120 GAL Max Capacity)
| Applications |
| Residential Water Systems Industrial, Commercial and Agricultural |
| |
| Features |
| Inner Liner: One-piece high-density polyethylene |
|
| Outer Shell: Fiberglass-wound and epoxy resin sealed |
|
| Upper and Lower Flanges: Reinforced polypropylene |
|
| Base: One-piece ABS |
|
| Service Connections: Reinforced polypropylene |
|
| Durable Composite Construction: A rugged one-piece molded inner liner of premium high-density polyethylene. Miles of continuous overlapping fiberglass strands, sealed with oven-cured epoxy, make the outer shell impervious to rust, dents and ultra-violet rays (no paint to scratch and touch up). |
|
| Tank Base: Rigid ABS is the sturdiest composite base on the market. Corrosionand impact-resistant. Base rotates 360 for ease-of-service hook-up. |
|
| Composite Service Connection: Threaded for ease of installation. |
|
| Maximum Operating Pressure = 100 PSI |
|
| 1-1/4" System connections sidewall. Bottom, dual port 1-1/4" PVC. |
|
| Customer-supplied air control valve |
|
|
Specifications
|
|
Brand
|
Berkeley / Pro-Source
|
|
Catalog Number
|
SP-26
|
|
Type
|
SidePort Contact Tanks
|
|
Series
|
SP series
|
|
Max Capacity (GAL./Liter)
|
120/454
|
|
Drawdown 30-50 Setting (Gallons/Liters)
|
26/98
|
|
Diameter (Inch/cm)
|
24/61
|
|
Overall Height (Inch/cm)
|
72.5/184
|
|
Height Inlet/Outlet to Floor (Inch/cm)
|
2/5.1
|
|
Height Sideport to Floor (Inch/cm)
|
20.2/51.3
|
|
Unit Ship Weight (Lbs./kg)
|
97/44.1
|
|
Notes
|
See Support Documents
|
Item Number:
SP-26
Manufacturer:
Berkeley Pumps
Manufacturer Part No:
SP-26
|
|
|
