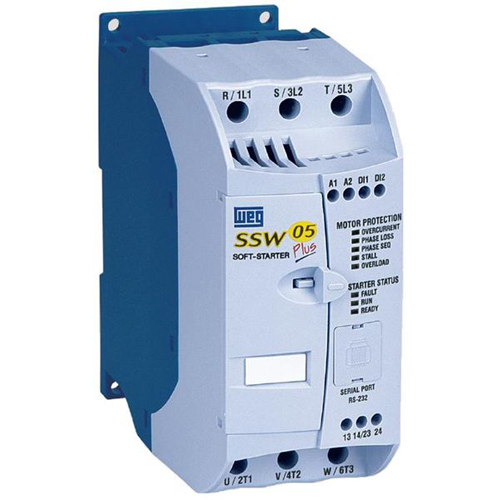

SSW050023T2246EPZ WEG Soft Starter (230-460V, 7.5 HP)
| Applications |
| The WEG SSW05 Soft Starter is a super compact fully digital soft starter with a state-of-the-art DSP controller. Its digital construction provides optimum operation, diagnostics capability and full motor protection. Simplicity in set-up and operation is assured since all parameters and set-up selections are made via dip switches and potentiometers. Status LED's alert the user of the operational status of the SSW05. Simplicity, ease of set-up, and the micro size assures quick and easy installation and operation. |
| |
| Features |
| Duty Cycle: 300% rated current during 10 seconds, 4 starts per hour |
|
| One digital input for Start/Stop. One digital input for Fault Reset. |
|
| One relay output for Run indication. One relay output for Full Voltage indication. |
|
| Protective Features: Motor overload, over current and locked rotor, SCR overload, phase loss and phase sequence |
|
| Ambient Temp. 55 C |
|
| Altitude up to 3300ft (1000m) |
|
| 90% non-condensing humidity |
|
| Built-in bypass contacts |
|
| RS-232 serial port |
|
| Adjustable acceleration and deceleration ramps (1-20 seconds) |
|
| Adjustable pedestal voltage (30 - 80% of line voltage) |
|
|
Specifications
|
|
Brand
|
WEG
|
|
Model Number
|
SSW050023T2246EPZ
|
|
Type
|
Soft Starter
|
|
WEG Series
|
SSW05
|
|
Voltage Range
|
230-460V
|
|
Motor HP @ 230 Volts
|
7.5
|
|
AMPS @ 230 Volts
|
23
|
|
Motor HP @ 460 Volts
|
15
|
|
AMPS @ 460 Volts
|
23
|
|
Enclosure
|
Protected Chassis
|
|
Frame Size
|
1
|
|
Dimensions (in.) H x W x D
|
5.1 X 2.3 X 5.7
|
|
Technical Manual
|
See Support Documents
|
|
Product Brochure
|
See Support Documents
|
Item Number:
SSW050023T2246EPZ
Manufacturer:
WEG Drives
Manufacturer Part No:
SSW050023T2246EPZ
|
|
|
