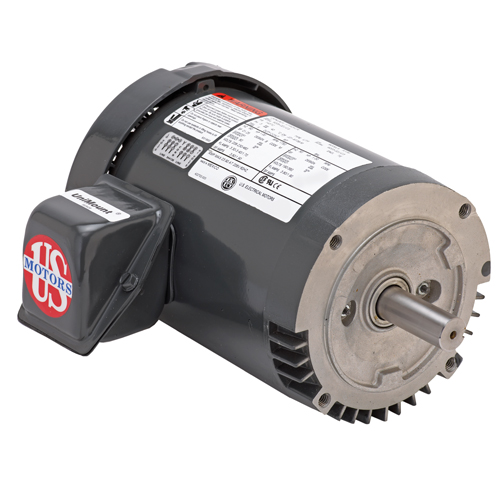

T14S3DCR U.S. Motors General Purpose Steel Edge Motor (1/4 HP, 1200 RPM, 208-230/460V, Three Phase)
|
Applications |
|
For general industrial equipment including fans, blowers, compressors, pumps and direct connected equipment. |
|
|
|
Features |
|
Class F Insulation, Class B Rise At Full Load On 60 Hertz Sine Wave Power |
|
|
Shaft Slinger On Pulley End |
|
| Specifications | | Brand | U.S. Motors | | Catalog Number | T14S3DCR | | Type | General Purpose Motor | | Series | STEEL EDGE | | HP | 1/4 | | RPM | 1200 | | Voltage | 208-230/460 | | Phase | Three | | Frame | 56C | | SF | 1 .15 | | "C" Dim. (inches) | 11 .3 | | Ship Wt. (lbs) | 27 | | NEMA Nom. Eff. | 75 .5 | | Full Load Amps | 1 .4-1 .4/0 .7 | | Enclosure | TEFC | | Mounting | C | | Hertz | 60 | | Material | Rolled Steel | | Insulation | Class F | | Base | Footless | | Notes | See support documents |
Item Number:
T14S3DCR
Manufacturer:
U.S. Motors
Manufacturer Part No:
P063ECG3580025B
|
|
|
