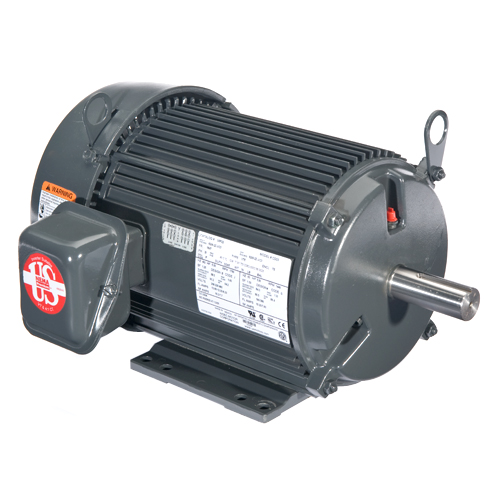

U3D10C U.S. Motors Definite Purpose UNIMOUNT Multispeed Motor (3 HP, 460 V, 3 phase, 213T Frame)
|
Applications |
|
US Motors Definite Purpose Three Phase, UNIMOUNT
Totally Enclosed Fan Cooled (TEFC) Multi-Speed Motor. For applications requiring more than one standard speed. |
|
|
|
Features |
|
Class F Insulation |
|
|
Extruded Aluminum Frame (140: Rolled Steel) |
|
|
Aluminum End Shields With Steel Bearing Inserts |
|
|
Regreasable Bearings 250 Frame & Up |
|
|
Double Shielded Bearings |
|
|
Removable Base 180 Frame & Up |
|
|
Lifting Provisions 180 Frame & Up |
|
|
Conversion Kits: C&D Flanges |
|
|
1.0 Service Factor Or Higher |
|
|
Variable Torque, 1800/900 RPM, One Winding |
|
| Specifications | | Brand | U.S. Motors | | Catalog Number | U3D10C | | Type | Definite Purpose UNIMOUNT Multispeed Motor | | HP (HP-Low) | 3 (2) | | RPM/RPM-Low | 1800/1200 | | Voltage | 460 | | Phase | Three | | Frame | 213T | | SF | 1 | | "C" Dim. (inches) | 18.6 | | Full Load Eff. | 82.5 | | Full load Amps | 4.2 | | Torque | Constant | | Winding | Two | | Enclosure | TEFC | | Notes | See Support Documents |
Item Number:
U3D10C
Manufacturer:
U.S. Motors
Manufacturer Part No:
C882
|
|
|
