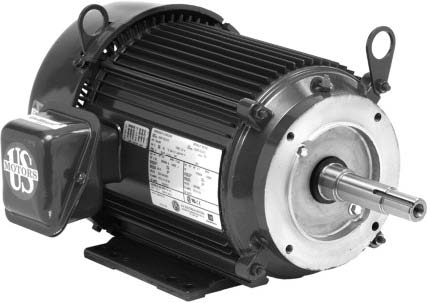

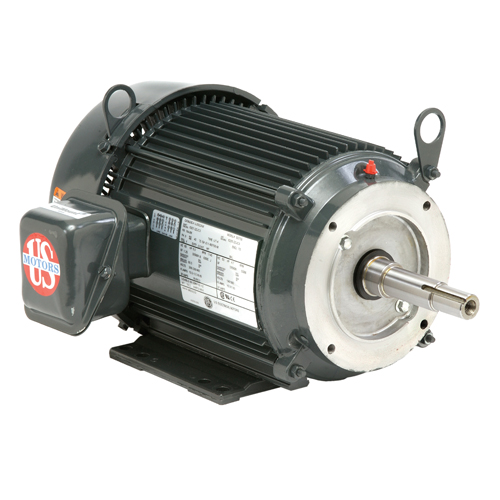

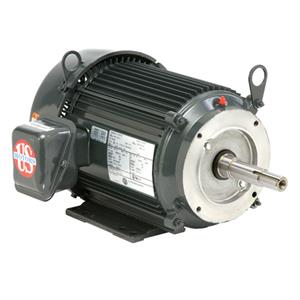

UJ32E1DM U.S. Motors Premium Efficient Close Coupled Pump Motor (1-1/2 HP, 208-230/460 V, 3 Phase)
| Applications |
| For the specific requirements of centrifugal pumps where the pump impeller is mounted directly on the motor shaft. Used in damp, dusty or dirty environments. |
| |
| Features |
| Class F Insulation, Class B Rise At Full Load On 60 Hz Sine Wave Power |
| Extruded Aluminum Frame (140: Rolled Steel) |
| Aluminum End Shields With Steel Bearing Inserts |
| 40C Ambient, NEMA Design B Performance On 60 Hz Sine Wave Power |
| Regreasable Shaft End Bearing 180 Frame & Up |
| Double Shielded Bearings |
| Removable Base 180 Frame & Up |
| Lifting Provisions 180 Frame & Up |
| JM Shaft For Mechanical Seal |
| "CE" Mark On Nameplate |
|
Tech Specs
|
|
Brand
|
U.S. Motors/Emerson
|
|
U.S. Motors Model Number
|
UJ32E1DM
|
|
HP
|
1-1/2
|
|
RPM
|
3600
|
|
Voltage
|
208-230/460
|
|
Phase
|
Three
|
|
C Dim. (inches)
|
14.3
|
|
Frame
|
143JM
|
|
Full Load Eff.
|
82.5
|
|
Full Load Amps
|
4.3-3.9/1.9
|
|
Enclosure
|
TEFC
|
|
SF
|
1.25
|
|
Type
|
Closed Coupled Pump Motor
|
|
Notes
|
See Product Literature
|
|
Apx. Wt. (lbs.)
|
30
|
Item Number:
UJ32E1DM
Manufacturer:
U.S. Motors
Manufacturer Part No:
FD62
|
|
|
