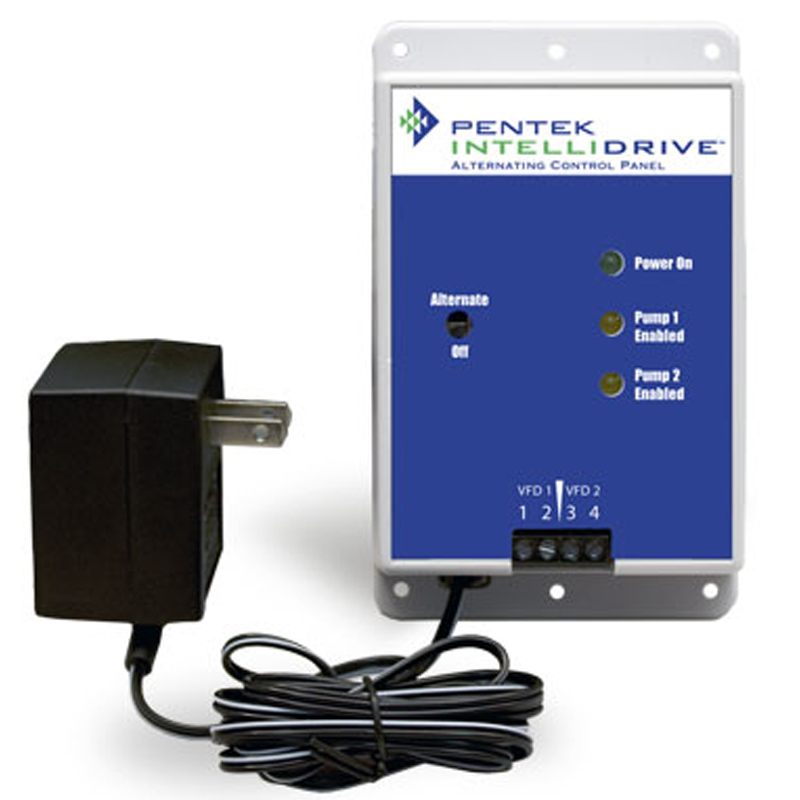

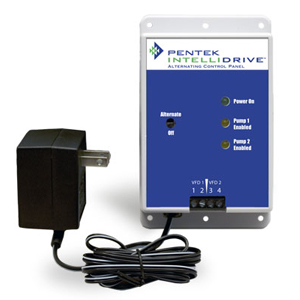

VFD-ALT PENTEK Alternating Control Panel for the Pentek Intellidrive (120 VAC Rated Volts, 50/60 Hz, NEMA 1 Enclosure)
| Applications |
| The Alternating Panel is designed to equalize wear on the pumps by alternating two Pentek Intellidrive VFDs every 24 hours. This panel alternates which pump is the lead and lag in a duplex system. It can also be used independently of the lead/lag function. |
| |
| Features |
| 4 Terminal Blocks To Connect VFDs - Use 18 AWG Wire |
|
| After the panel is mounted, wire the panel, plug it into a 120 VAC outlet, and turn the switch to Alternate. Pump 1 will turn on and the pump 1 enable LED will illuminate. After 24 hours Pump 2 will turn on and the pump 2 enable LED will illuminate. |
|
| The Alternating PENTEK INTELLIDRIVE Control Panel will alternate pumps that are connected to the PENTEK INTELLIDRIVE |
|
| Alternate PENTEK INTELLIDRIVE VFD's on pressure boosting systems. Equalize wear on pumps. |
|
| Power On Indicator |
|
| Pump 1 Enabled Indicator |
|
| Pump 2 Enabled Indicator |
|
| Alternate/Off Switch |
|
|
Specifications
|
|
Brand
|
PENTEK
|
|
Catalog Number
|
VFD-ALT
|
|
Type
|
Alternating Control Panel
|
|
Rated Volts
|
120 VAC
|
|
Hz
|
50/60
|
|
Height
|
5.375
|
|
Width
|
3.25
|
|
Depth
|
1.625
|
|
Enclosure
|
NEMA 1
|
|
Notes
|
See Support Documents
|
Item Number:
VFD-ALT
Manufacturer:
PENTEK
Manufacturer Part No:
VFD-ALT
|
|
|
