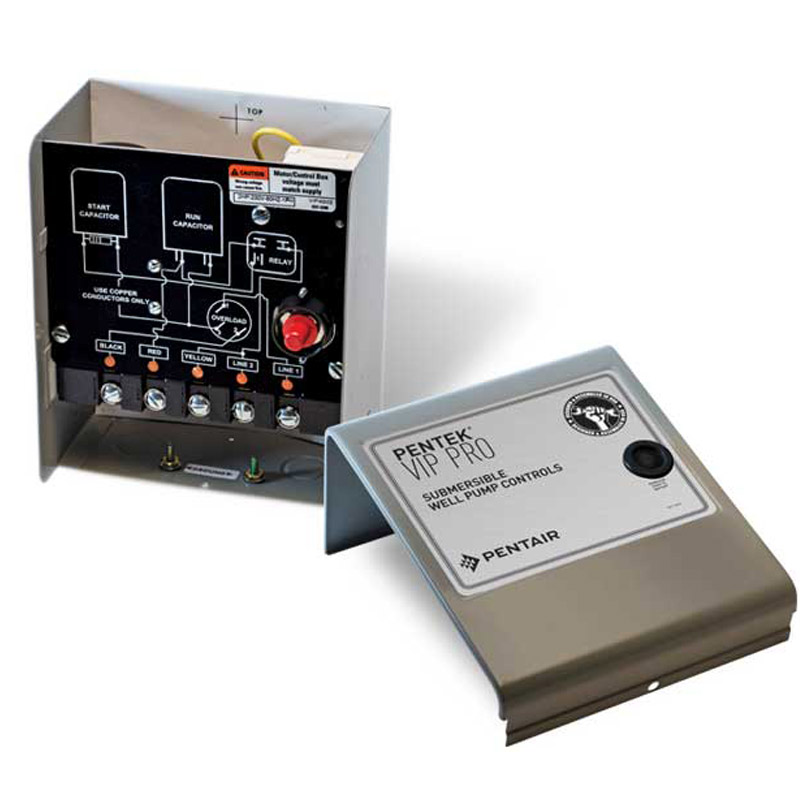

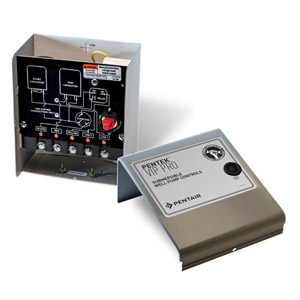

VIP4J02 PENTEK Submersible Pump Control Box (5 HP, 3.7 KW, 230 Voltage, 60 Hz, NEMA 3R/IP24 Enclosure, VIP Pro Series)
| Applications |
| Pentek VIP Pro Series Controls. Capacitor start, capacitor run designed for the full range of single-phase 1/2, 3/4, 1, 1-1/2, 2, 3 and 5 HP, 3-wire submersible motors |
| |
| Features |
| 330 Volt Made in the USA capacitors |
|
| Pentek proprietary dielectric control panel board, UL and CSA Certified |
|
| Universal controls? designed to work on all manufacturers 3-wire submersible motors |
|
| Large wiring area offers generous space to make your wiring connections. Incorporates 1/2, 3/4 and 1 conduit knock-outs |
|
| Weather resistant construction NEMA 3R/IP24 rated enclosure for indoor/ outdoor use |
|
| Through-the-cover reset overload protection on 1-1/2 through 5 HP models |
|
| Control box is functional with the cover removed, offering easier in-the-field troubleshooting |
|
| 330 Volt Start Capacitor |
|
| *Control boxes are designed to be used on Pentair motors with the same HP and Voltage ratings. Do not use on motors with different ratings. |
|
|
Specifications
|
|
Brand
|
PENTEK
|
|
Catalog Number
|
VIP4J02
|
|
Type
|
4 Single-Phase Control Boxes
|
|
Series
|
VIP Pro
|
|
HP
|
5
|
|
KW
|
3.7
|
|
Voltage
|
230
|
|
Hz
|
60
|
|
Enclosure Size
|
B
|
|
Voltage Relay
|
U17-2079
|
|
Protector
|
BET00EE-21
|
|
Enclosure
|
NEMA 3R/IP24
|
|
Start Capacitor PN
|
U17-1437
|
|
Run Capacitor PN
|
U17-1442
|
|
Type
|
CSCR
|
|
Notes
|
See Support Documents
|
Item Number:
VIP4J02
Manufacturer:
PENTEK
Manufacturer Part No:
VIP4J02
MSRP: $231.00
Your Price: View price in cart
* Whole number only
U17-1437-R Pentek START CAPACITOR, 270 MF, 330V
|
MSRP: $110.00
Your Price: View price in cart
* Whole number only
U17-1442-R Pentek RUN CAPACITOR, 40 MF, 370V
| |
|
|
|
