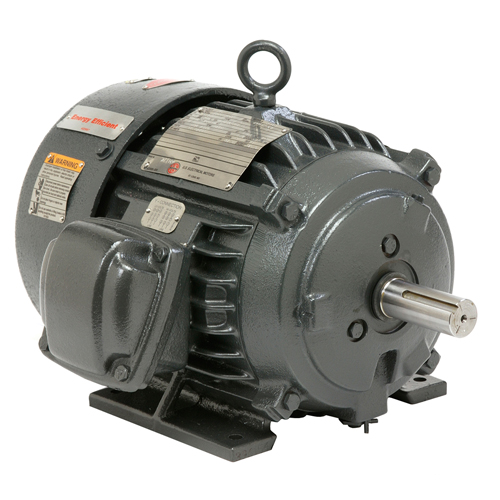

X100P3C U.S. Motors NEMA Premium, Dual Label Motor (100 HP, 460 Voltage, Three Phase, 1200 RPM)
|
Applications |
|
For pumps, fans, compressors, conveyors and tools located in hazardous locations as defined by Class and Group. |
|
|
|
Features |
|
UL Listed & CSA Certified |
|
|
Cast Iron Inner Bearing Caps (180 Frame & Larger) |
|
|
40C Ambient, NEMA Design B Performance |
|
|
Regreasable Bearings, 180 Frame & Up |
|
|
Lifting Provisions, 180 Frame & Up |
|
|
Conversion Kits: Cast Iron Fan Cover (180 Frame & Up) |
|
|
Sealed Bearings 56-140, Shielded 180 Frame & Up |
|
|
Class, Group & Temp Code as Noted Below |
|
|
|
|
|
|
|
|
|
|
| Tech Specs | | Brand | U.S. Motors/Emerson | | U.S. Motors Model Number | X100P3C | | HP | 100 | | RPM | 1200 | | Voltage | 460 | | Phase | Three | | Temp Code | T3B | | Frame | 444T | | SF | 1 | | C Dim. (inches) | 45.4 | | Full Load Amps | 124 | | Full Load Eff. | 95 | | Enclosure | TEFC | | Class I Group | D | | Apx. Wt. (lbs.) | 1485 | | | | | | | | | | | | | | | |
Item Number:
X100P3C
Manufacturer:
U.S. Motors
Manufacturer Part No:
CV81
|
|
|
