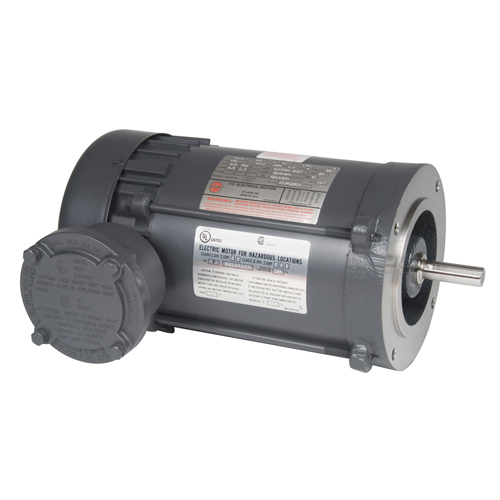

XS2P2ACR U.S. Motors Duel and Single Label C Face Hazardous Location Motor (2 HP, 208-230/460 Voltage, Three Phase, 1800 RPM)
|
Applications |
|
For pumps, fans, compressors, conveyors and tools located in hazardous locations as defined by Class and Group. |
|
|
|
Features |
|
UL Listed & CSA Certified | Lifting Provisions, 180 Frame & Up
|
|
Cast Iron Inner Bearing Caps (180 Frame & Larger) | Conversion Kits: Cast Iron Fan Cover
(180 Frame & Up)
|
|
40C Ambient, NEMA Design B Performance (04) | Sealed Bearings 56-140, Shielded 180 Frame & Up
|
|
Regreasable Bearings, 180 Frame & Up | Class, Group & Temp Code as Noted Below
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| Tech Specs | | Brand | U.S. Motors/Emerson | | U.S. Motors Model Number | XS2P2ACR | | HP | 2 | | RPM | 1800 | | Voltage | 208-230/460 | | Phase | Three | | Frame | 145TC | | Full Load Amps | 6.2-6.0/3.0 | | C Dim (inches) | 15.8 | | Class II Group | EFG | | Full Load Eff. | 86.5 | | Class I Group | CD | | Temp Code | T3C | | Mount | Footless | | Apx. Wt. (lbs.) | 50 | | | | | | | | | | | | | | | |
Item Number:
XS2P2ACR
Manufacturer:
U.S. Motors
Manufacturer Part No:
PH63ACW1085015B
|
|
|
