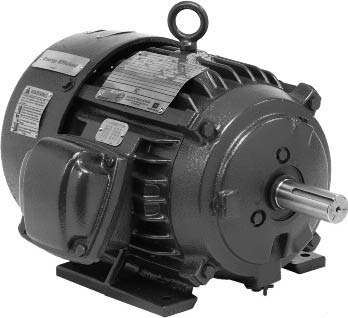

YC100P2B U.S. Motors Corro Duty Hazardous Location Motor (100 HP, 230/460 Voltage, Three Phase, 1800 RPM)
| Applications |
| For pumps, fans, compressors, conveyors and tools located in hazardous locations as defined by Class and Group. |
| |
| Features |
| UL Listed & CSA Certified |
Sealed Bearings 56-140, Shielded 180-360, Open 400-440 Frames |
| All Cast Iron Construction (140 Frame Has Steel Base) |
Class F Insulation, Listed For Ambients -25C To +40C |
| Corrosion Resistant Mill & Chemical Duty Paint |
Brass Breather Plug |
| Stainless Steel Nameplate & Zinc Plated Hardware |
Suitable For Inverter Use Per Policy Statement In Introduction, 2:1 CT (See Page vii) |
| Shaft Slinger On Pulley End For IP54 Protection |
Class I (Group D), T2B Temperature Code |
| Cast Iron Inner Bearing Caps (180 Frame & Larger) |
1.15 Service Factor On 60 Hertz Sinewave Power |
| 40C Ambient, NEMA Design B Performance On 60 Hz Sine Wave Power |
|
| Regreasable Bearings 180 Frame & Up, Lifting Provisions 180 Frame & Up |
|
|
|
|
|
|
|
|
Tech Specs
|
|
Brand
|
U.S. Motors/Emerson
|
|
U.S. Motors Model Number
|
YC100P2B
|
|
HP
|
100
|
|
RPM
|
1800
|
|
Voltage
|
230/460
|
|
Phase
|
Three
|
|
Frame
|
405T
|
|
Full Load Eff.
|
95.4
|
|
Full Load Amps
|
225/113
|
|
Type
|
Corro Duty Hazardous Location Motor
|
|
Enclosure
|
TEFC
|
|
C Dim (inches)
|
38
|
|
Class, Group, Temp Code
|
Class I, Group D, Temp Code T2B
|
|
Motor Notes
|
Single Label
|
|
Apx. Wt. (lbs.)
|
1244
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Item Number:
YC100P2B
Manufacturer:
U.S. Motors
Manufacturer Part No:
CV76
|
|
|
