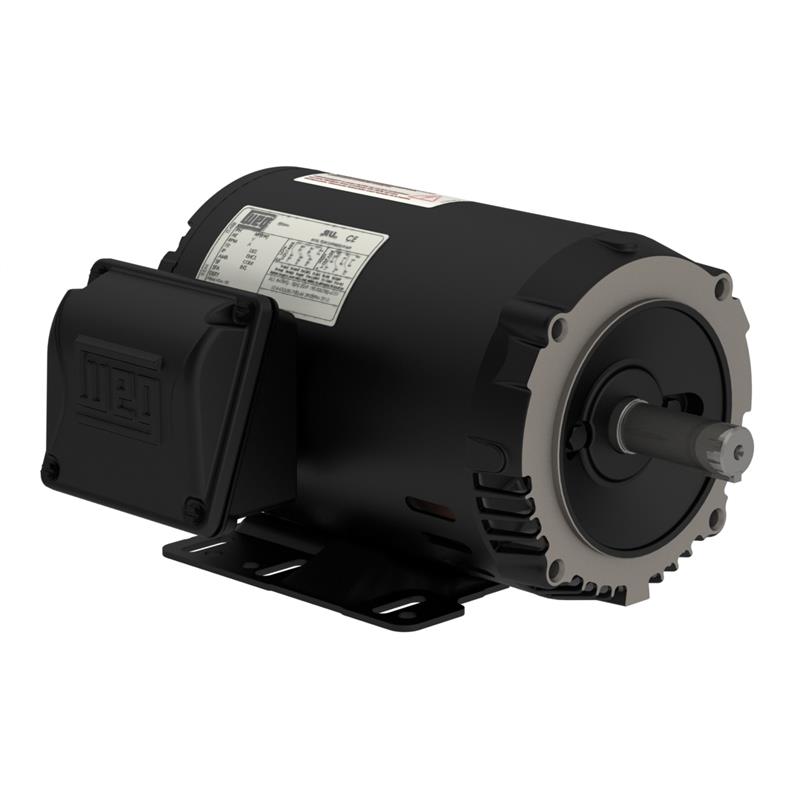

00156OT3E56C-S WEG Motor (1.5 HP, 3600 RPM, 3 Phase, 56C, ODP, 230/460 V, Foot Mount)
|
Applications |
|
WEG Open Drip Proof (ODP) motor is a general purpose line designed for environments where dirt and moisture are minimal. |
|
|
|
Features |
|
Number of poles: 2 through 6 |
|
|
Mounting: F-1 |
|
|
Efficiency levels: NEMA Premium |
|
|
Frequency: 60 Hz (dual rated 50 Hz 190-220/380-415V) |
|
|
Frame Sizes: NEMA 56 to 254/6T |
|
|
Foot mount / C-face / Footless availability |
|
|
Aluminum endshields |
|
|
Cast Iron flanges for improved strength |
|
|
New ventilation system for improved thermal performance |
|
|
Robust feet design suitable for tougher applications |
|
|
Terminal box rotatable in 90 degrees increments for flexibility during installation |
|
| Specifications | | Brand | WEG | | Catalog Number | 00156OT3E56C-S | | Type | General Purpose C-Face Motor | | HP | 1.5 | | RPM | 3600 | | Phase | 3 | | Frame | 56C | | Enclosure | ODP | | Voltage | 230/460 | | Full Load Amps | 1.85 | | Full Load Efficiency | 84 | | Frame Material | Rolled Steel | | Service Factor | 1.15 | | "C" Dimensions | 11.889 | | Mounting | Foot Mount | | Warranty | 1 Year |
Item Number:
00156OT3E56C-S
Manufacturer:
WEG
Manufacturer Part No:
00156OT3E56C-S
|
|
|
