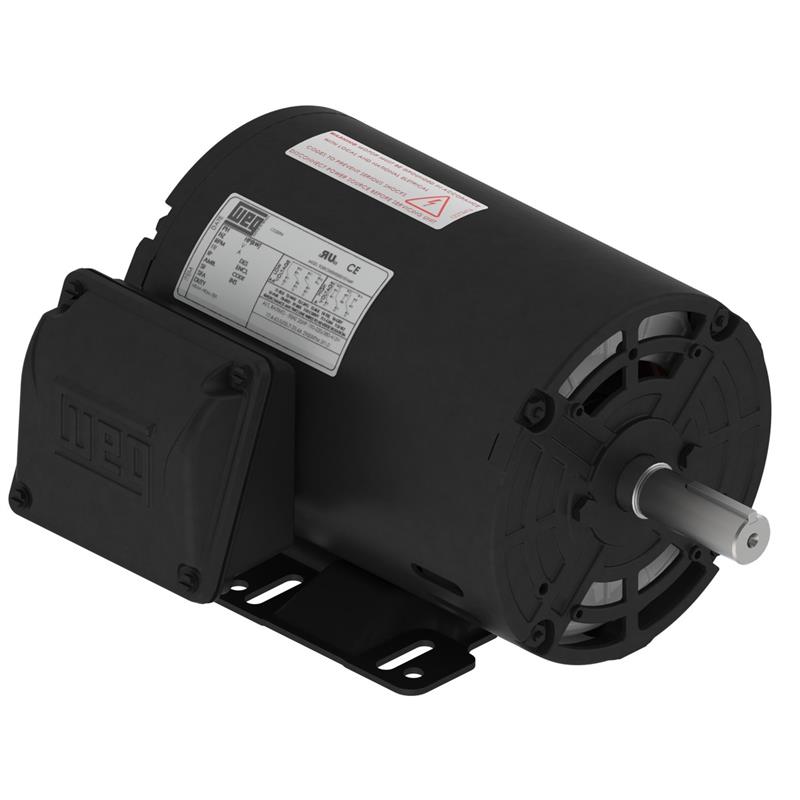

00156OT3H143T-S WEG Motor (1.5 HP, 3600 RPM, 3 Phase, 60 Hz, 143/5T Frame, ODP, 575 V, Foot-Mount)
|
Applications |
|
WEG Open Drip Proof (ODP) motor is a general purpose line designed for environments where dirt and moisture are minimal. The ODP cast iron frame is designed to provide maximum ventilation and heat dissipation, offering low
vibration levels, high mechanical stiffness and durability. Widely used in applications such as compressors, pumps and chillers, the ODP motor line meets or exceeds the efficiency levels determined by International Standards
and the minimum efficiency level programs in worldwide.
|
|
|
|
Features |
|
Rated Output: 0.25 to 25 HP |
|
|
Number of Poles: 2 through 6 |
|
|
Class F insulation |
|
|
Frame Sizes: NEMA 56 to 254/6T |
|
|
Efficiency levels: NEMA Premium |
|
|
Frequency: 60 Hz (dual rated 50 Hz 190-220/380-415V) |
|
|
IP21 standard |
|
|
F1 mount as standard |
|
|
Foot mount / C-face / Footless availability |
|
|
Enclosure: ODP |
|
|
Aluminum endshields |
|
| Specifications | | Brand | WEG | | Catalog Number | 00156OT3H143T-S | | Type | General Purpose Motor | | HP | 1.5 | | RPM | 3600 | | Phase | 3 | | Frequency | 60 Hz | | Frame | 143/5T | | Enclosure | ODP | | Voltage | 575 | | Mounting | Foot-Mount | | Full Load Amps | 1.5 | | Full Load Efficiency | 84 | | Frame Material | Rolled Steel | | Service Factor | 1.15 | | "C" Dimensions | 11.181 | | Warranty | 1 Year |
Item Number:
00156OT3H143T-S
Manufacturer:
WEG
Manufacturer Part No:
00156OT3H143T-S
|
|
|
