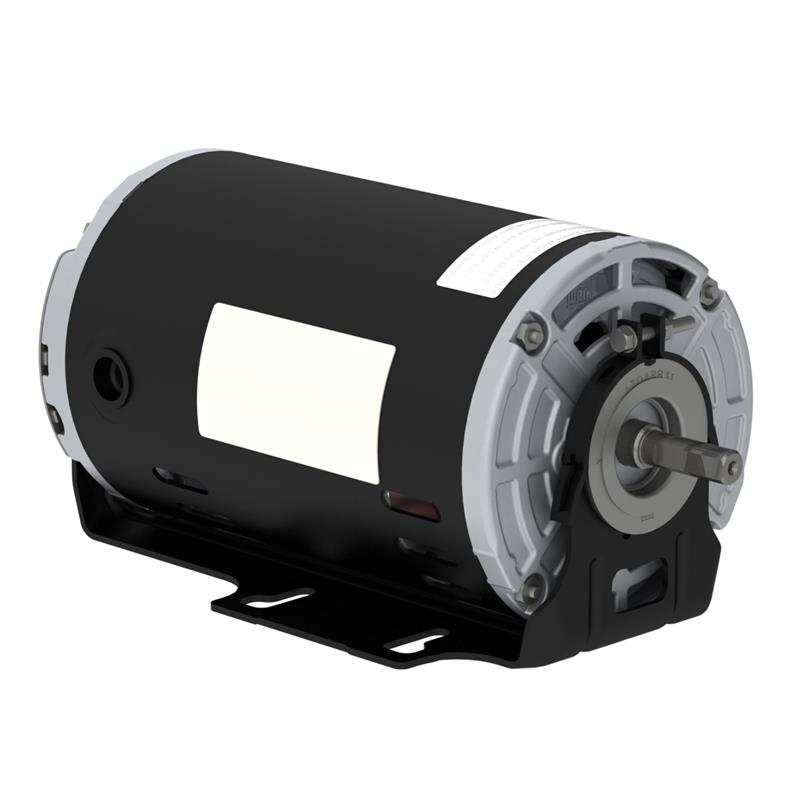

00158OT3ERB56-S WEG Motor (1.5 HP, 1.1 KW, 3 Phase, 1800 RPM, 56H Frame, ODP, 230/460 V, Resilient Base)
|
Applications |
|
WEG Open Drip Proof (ODP) motor is a general purpose line designed for environments where dirt and moisture are minimal. |
|
|
|
Features |
|
Rated Output: 0.25 to 25 HP |
|
|
Number of Poles: 2 through 6 |
|
|
Class F insulation |
|
|
Frame Sizes: NEMA 56 to 254/6T |
|
|
Efficiency levels: NEMA Premium |
|
|
Frequency: 60 Hz (dual rated 50 Hz 190-220/380-415V) |
|
|
IP21 standard |
|
|
F1 mount as standard |
|
|
Foot mount / C-face / Footless availability |
|
|
Double shielded ball bearings on frames 56 to 213/5T. Optional double sealed ball bearings and/or bearing cap |
|
|
Aluminum endshields |
|
| Specifications | | Brand | WEG | | Catalog Number | 00158OT3ERB56-S | | Type | General Purpose Motor | | HP | 1.5 | | KW | 1.1 | | RPM | 1800 | | Phase | 3 | | Frame | 56H | | Enclosure | ODP | | Voltage | 230/460 | | FL Amps | 2.1 | | FL Efficiency | 86.5 | | Frame Material | Rolled Steel | | Service Factor | 1.15 | | "C" Dimensions | 13.189 | | Mounting | Resilient Base | | Item Condition | Factory New | | Warranty | 1 Year |
Item Number:
00158OT3ERB56-S
Manufacturer:
WEG
Manufacturer Part No:
00158OT3ERB56-S
|
|
|
