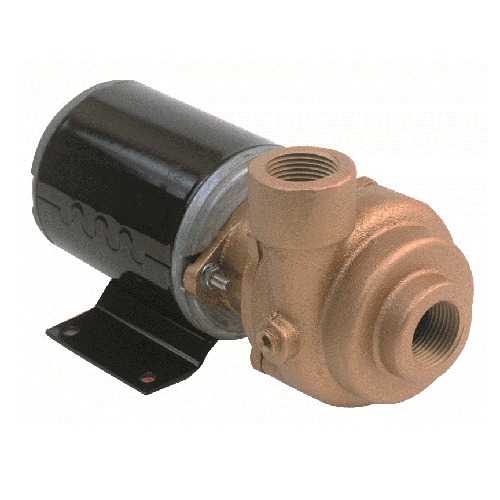

AMT Pumps 3670-97 Bronze Marine Pump (1/8 HP, 115V, 3/4" Suction, 3/4" Discharge, 1 Phase, 1750 RPM, TEFC)
| Applications |
| The AMT Model 3670-94 Naval Bronze Straight Centrifugal pump is designed for low pressure salt water wash down and recirculating applications. The pump has been sized for salt water (1.03 specific gravity) and feature provisions for the installation of a seal wash, front drain plug and pullfrom-rear design. The unit is driven by a 1/8 HP capacitor start induction motor (TEFC) with ball bearings and a stainless steel shaft. On/off switch and line cord are standard. |
| |
| Features |
| Bronze Construction |
|
| Buna-N Mechanical Seal and O-ring |
|
| Maximum Temperature 180 F |
|
| Self-cleaning, Semi-open Impeller |
|
| Totally Enclosed Motors |
|
|
Specifications
|
|
Brand
|
AMT
|
|
Catalog Number
|
3670-97 (Replaced 3670-94)
|
|
Type
|
Marine Pumps
|
|
Series
|
Bronze Marine Pumps
|
|
Curve
|
B
|
|
HP
|
1/8
|
|
Phase
|
1
|
|
RPM
|
1750
|
|
Enclosure
|
TEFC
|
|
Voltage
|
115
|
|
Full Load Amps
|
11
|
|
Suction
|
3/4" NPT
|
|
Discharge
|
3/4" NPT
|
|
Length
|
10.1"
|
|
Width
|
8.0"
|
|
Height
|
5.6"
|
|
Ship Wt. (Lbs.)
|
20
|
|
Warranty
|
1 Year
|
|
Notes
|
See Support Documents
|
Item Number:
3670-97
Manufacturer:
AMT
Manufacturer Part No:
3670-999-97
|
|
|
