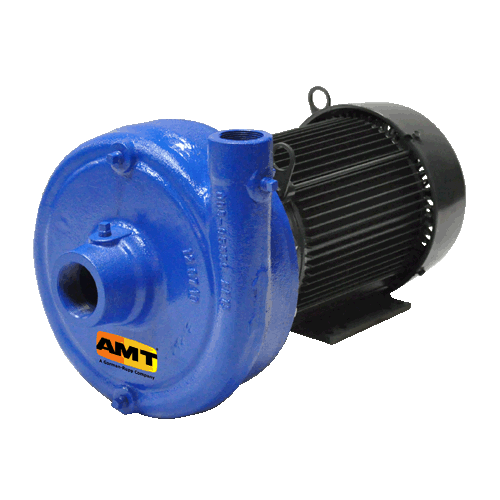

AMT Pumps 4201-95, 1750 RPM Straight Centrifugal Pump (5 HP, 208-230/460V, 3 Phase, TEFC)
| Applications |
|
The AMT Cast Iron 1750 RPM Solids Handling End Suction Centrifugal pump delivers high efficiency performance that minimizes operation and energy costs. Built to last, each pump features a precision cast bronze impeller that is dynamically balanced to minimize vibration and maximize motor bearing life. Pullfrom-rear design simplifies maintenance without disturbing piping connection. Gauge taps at the suction and discharge ports allow for system monitoring. Maximum 1/4" diameter solids handling and optional seal flush/air relief valve is available for vertical installations.
Pumps require a flooded suction and positive suction pressure.
|
| |
| Features |
| Cast Iron Construction |
| Viton Silicon Carbide/Carbon Mechanical Seal |
| Silicon Bronze Precision Cast Dynamically Balanced Impeller |
| Bronze Case Wear Ring |
| 2" x 1.5" NPT Ports |
| Pull-From-Rear Design Permits Easy Servicing Without Disturbing Piping |
| 1/4" NPT Gauge Taps on Suction & Discharge Ports for System Monitoring |
| Bronze Shaft Sleeve to Protect Motor Shaft |
| Maximum Temperature 200 F |
| Includes Seal Flush/Air Relief Valve |
| Front Drain Plugs |
| TEFC JM NEMA Frame IE2/EPAC Energy Efficient Motors |
| Pumps require a flooded suction and positive suction pressure. |
|
Specifications
|
|
Brand
|
AMT
|
|
Catalog Number
|
4201-95
|
|
Type
|
Centrifugal Pump
|
|
HP
|
5
|
|
PH
|
3
|
|
Speed
|
1750 RPM
|
|
Frame (NEMA)
|
182JM
|
|
Enclosure
|
TEFC
|
|
Voltage @ 60 Hz
|
208-230/460
|
|
Full Load Amps
|
22/11
|
|
Suction
|
2" NPT
|
|
Discharge
|
1-1/2" NPT
|
|
Max Temperature
|
200° F
|
|
Max Solid Handling
|
1/4" Diameter Solids
|
|
Ship Wt. (Lbs.)
|
215 |
|
Construction
|
Cast Iron
|
|
Seal
|
Viton Silicon Carbide/Carbon
|
|
Warranty
|
1 Year
|
|
Notes
|
See Support Documents
|
Item Number:
4201-95
Manufacturer:
AMT
Manufacturer Part No:
4201-95
|
|
|
