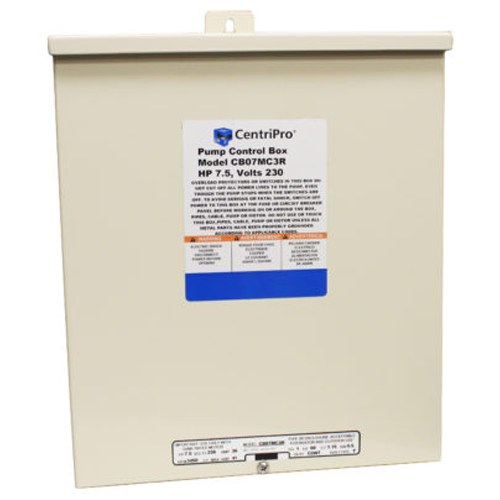

Goulds Pumps, CentriPro CB15MC3RF Magnetic Contactor Control Boxes for 6" Submersible Motors (15 HP, 230 Volts, Single Phase)
|
Images may be generic. Please inquire
|
Your Price:
Contact Us For a Quote
|
| Applications |
| FOR 6", 5-15 HP CENTRIPRO SUBMERSIBLE MOTORS |
| |
| Features |
| IMPORTANT: Use these control boxes on only CentriPro (Hitachi) motors. Franklin Electric control boxes will not work and will void the CentriPro warranty. Do not use these control boxes on Franklin Electric 6" motors as the overloads and capacitors are not the same as used by FE, using these will void FE's warranty. |
|
| Overload circuit breaker is rated at 100 amps versus 90 amp standard in CB15MC. Use in areas with high ambient temperatures to reduce nuisance tripping. |
|
| Built-in Magnetic Contactors allow the use of standard pressure switches, prolong switch life and eliminate the need to source and install separate contactors, saving installation time and reducing total system component costs. |
|
| Voltage Relay for installer convenience |
|
| Start Capacitors for starting torque |
|
| Run Capacitors for efficiency and quiet operation |
|
| Type N3R enclosure for indoor or outdoor mounting |
|
| Multiple knockouts and two ground terminals |
|
| Manual reset overload circuit breakers |
|
| TESTED TO UL AND CSA STANDARDS BY UL. |
|
|
Specifications
|
|
Brand
|
Goulds
|
|
Catalog Number
|
CB15MC3RF
|
|
Type
|
Magnetic Contactor Control Boxes for FM Series 6" Single Phase Motors
|
|
Use on Motor No.
|
6F151
|
|
HP
|
15
|
|
Volts
|
230
|
|
Phase
|
Single
|
|
Start Caps
|
216-260
|
|
Run Caps
|
(2) 70
|
|
Contactor Rating
|
90A
|
|
Overlead Circuit Breaker
|
80A
|
|
Enclosure Dimensions
|
17.5" H x 11" W x 6.7" D
|
|
Shipping Weight (lbs)
|
27
|
|
Additional
|
FM Series control boxes are designed for use with FM Series 6" motors only.
|
|
Warranty
|
1 year
|
|
Notes
|
See Support Documents Below
|
Item Number:
CB15MC3RF
Manufacturer:
Goulds Pumps
Manufacturer Part No:
CB15MC3RF
|
|
|
