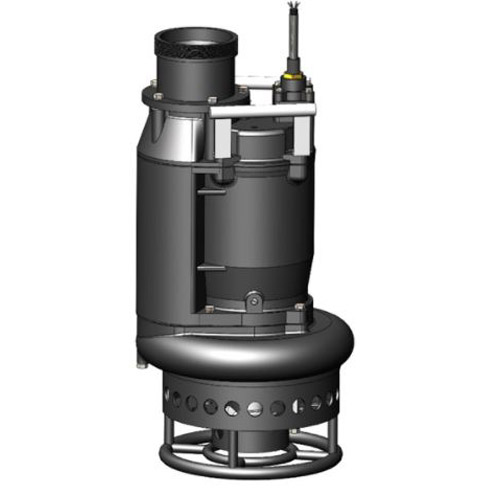

MLS3-5 Mody Pumps Electric Submersible Slurry and Sand Pump (5 HP, 3" Discharge, 370 Max GPM)
|
Images may be generic. Please inquire
|
Your Price:
Call for Pricing
|
| Applications |
| ELECTRIC SUBMERSIBLE SLURRY & SAND PUMP - 28% HI-CHROME DESIGNED FOR PORTABLE AND ABRASIVE APPLICATIONS |
| |
| Features |
| POWER CABLE: Waterproof/oil proof, rubber-insulated, neoprene-sheathed copper conductor flexible cable, 50 ft. length standard. |
|
| SHAFT SEALS: Double Mechanical Seals, outer and inner are Silicon Carbide, both rotating and stationary faces. |
|
| HYDRAULICS: Multi Vane, Semi-Open Impellers to effectively handle abrasive media |
|
| COOLING: Top discharge ensures that the pump is cooled by the pumped liquid allowing the pump to operate even if not completely submerged. |
|
| SURFACE TREATMENT: Primer with Epoxy paint |
|
|
Specifications
|
|
Brand
|
Mody Pumps
|
|
Catalog Number
|
MLS3-5
|
|
Type
|
ELECTRIC SUBMERSIBLE SLURRY & SAND PUMP
|
|
Series
|
MLS SERIES
|
|
HP
|
5
|
|
Discharge
|
3"
|
|
Max GPM
|
370
|
|
Max Shut-Off Head
|
50'
|
|
Solid Handling
|
1.2"
|
|
Impeller Type
|
Multi Vane
|
|
Power Sypply
|
3 Phase / 208/230/460/575V
|
|
Insulation
|
F
|
|
Max Starts / Stop Per Hr
|
15
|
|
Wet Ends
|
28% Hi Chrome
|
|
Motor
|
4 Poles
|
|
Weight (lbs)
|
262
|
|
Impeller Type
|
Semi-Open
|
|
Max Temp
|
104 Degrees F.
|
|
Max Submergence
|
65 Feet
|
|
Height
|
32.2"
|
|
Notes
|
See Support Documents
|
Item Number:
MLS3-5
Manufacturer:
Mody Pumps
Manufacturer Part No:
MLS3-5
|
|
|
